Mighty Armory GOLD MATCH FLHS .223 Rem / 5.56 NATO Full Length Sizing Decapping Die .000–.005

Mighty Armory GOLD MATCH FLHS .223 Rem / 5.56 NATO Full Length Sizing Decapping Die .000–.005

Mighty Armory

$169.95
$0.00 $169.95
Sale Sold out
Shipping calculated at checkout.
The Gold Match .223 / 5.56 full length sizing die restores brass to true SAAMI specification from the case head to the neck. Simple operation. Easily set shoulder bump from zero to -.005 with a tur...Read more
  • American Express
  • Discover
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Product Description

The Gold Match .223 / 5.56 full length sizing die restores brass to true SAAMI specification from the case head to the neck. Simple operation. Easily set shoulder bump from zero to -.005 with a turn of the die.

Expect reliable feeding, proper shoulder bump, uniform neck tension and consistent chamber fit. Full length sizing is recommended for all rifle cases. Neck sizing can lead to overexpanded cases and weakened brass.

Mirror Bore Finish. Precision CNC machined from high grade steel for perfect vertical alignment. Single point cut finish and extremely smooth bore (5 bore finish) at 60 Rockwell hardness.

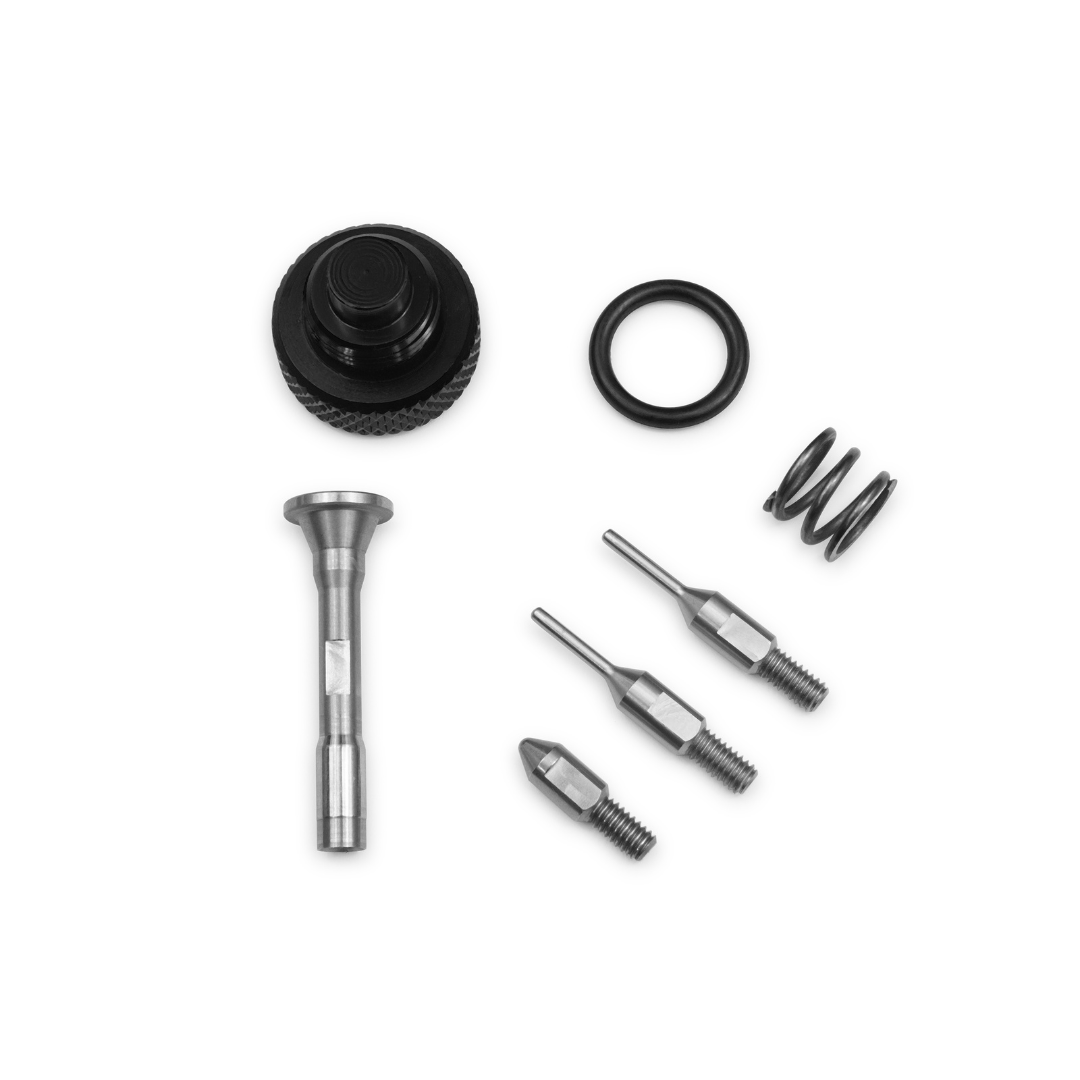

Drop-In Mandrel Expander Shaft. The .223 rem mandrel shaft is Swiss-machined, heat treated to 50 Rockwell. The mandrel expander shaft ensures uniform and consistent case mouth expansion for proper bullet seating.

The mandrel shaft sits concentrically inside the die bore with three points of contact. The first modular die in the reloading industry that ensures lockup with the cap.

The threads inside the shaft will accept either a Mighty Armory decapping pin or a pointer. The pointer is used in place of the decapping pin to protect the shaft threads and acts as a guide when sizing the case.

Effortless sizing and decapping. Spring action of the primer flicker cap prevents primer pullback and press chute jams. The die will easily decap and resize over a million cycles.

Experience the Benefits

  • Shoulder Bump up to -.005 bump.
  • 100% CNC machined, Made in the USA.
  • High grade tool steel and heat treated.
  • Smooth 5 Bore Finish like glass.
  • Concentricity -.0005 at the case mouth and shoulder radius.
  • No tools needed for setup.

Sizing with Mighty Armory reloading dies will result in precision reloads that perform significantly better than factory.

Lube Recommendations

For Single Stage or Turret Presses: Use Imperial Sizing Wax.

For Progressive Presses: Use PEG75 lanolin spray for smooth, high-volume operation.

See, Feel and Shoot the Difference with Mighty Armory Precision Reloading Dies.

  • "World's Toughest" Reloading Dies
  • Precision Reloading Tools
  • Made in the USA

What's Included

Popular Questions

Q: Will this size both .223 Remington and 5.56 NATO brass?
Yes. The die is engineered to properly full length size both .223 Rem and 5.56 NATO cases to SAAMI-spec geometry.

Q: Is this a true full length sizing die?
Yes. It sizes the case head, shoulder, and neck to restore fired brass to proper dimensions for reliable chambering.

Q: How much shoulder bump can I set?
You can adjust shoulder bump from zero to approximately -.005” by turning the die up or down in your press.

Q: Is full length sizing necessary?
Full length sizing is strongly recommended to bring the case back to SAAMI dimensions to ensure reliable feeding and extraction.

Instructions

Click Link to Rifle Sizing Die Instructions

Step 1: Clean the die bore before use. First with alcohol on a q-tip or paper towel. Then dry with a q-tip or paper towel.

Step 2: If sizing on a single stage or turret press, lube cases with imperial wax. If sizing on an autoprogressive press, use 6oz 91% alcohol and 1oz PEG75 lanolin. Spray cases, mix and let dry for 30 minutes.

Step 3: Turn the die into your press tool head until the mouth makes contact with your plate or shell holder. If you want to lengthen your headspace back the die out.

Step 4: Size a case and check your headspace length. If you want it deeper then turn the die down slightly and size the case.

Step 5: Once you find the sweet spot and you achieve the desired headspace for your chamber then lock the die into place.

View full details
223 full length sizing die - mighty armory precision reloading 223 Remington Sizing & Decapping Die | Mighty armory precision reloading dies full length sizing die - 223 rem - mighty armory precision reloading dies .223 rem decappin parts for mighty armory precision sizing die

Mighty Armory GOLD MATCH FLHS .223 Rem / 5.56 NATO Full Length Sizing Decapping Die .000–.005

$169.95
$0.00 $169.95
Sale Sold out

Easily Set Headspacing

Improve performance by adjusting for shoulder bump with a simple turn of the die. Easy, tool-free set-up. Use with the decapping pin or our pointer on the mandrel expander.

One-And-Done Full Length Sizing

Eliminate additional steps and further runout. Ensure consistent sizing to SAAMI spec while maintaining integrity of the brass.
Sizing reloading dies for rifle calibers image

Single Point Finish

Smooth bore surface with a finish below 10 ensures case sizing is smooth and easier on your press and brass.

How to Use Mighty Armory Case Lube

Lanolin-based. Mix and spray.

MIGHTY ARMORY

PRECISION MACHINED

All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

Learn More

SUPERIOR MATERIALS

We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

Learn More

MADE IN AMERICA

Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.

Learn More
;
