Built for Competitive Precision Reloading

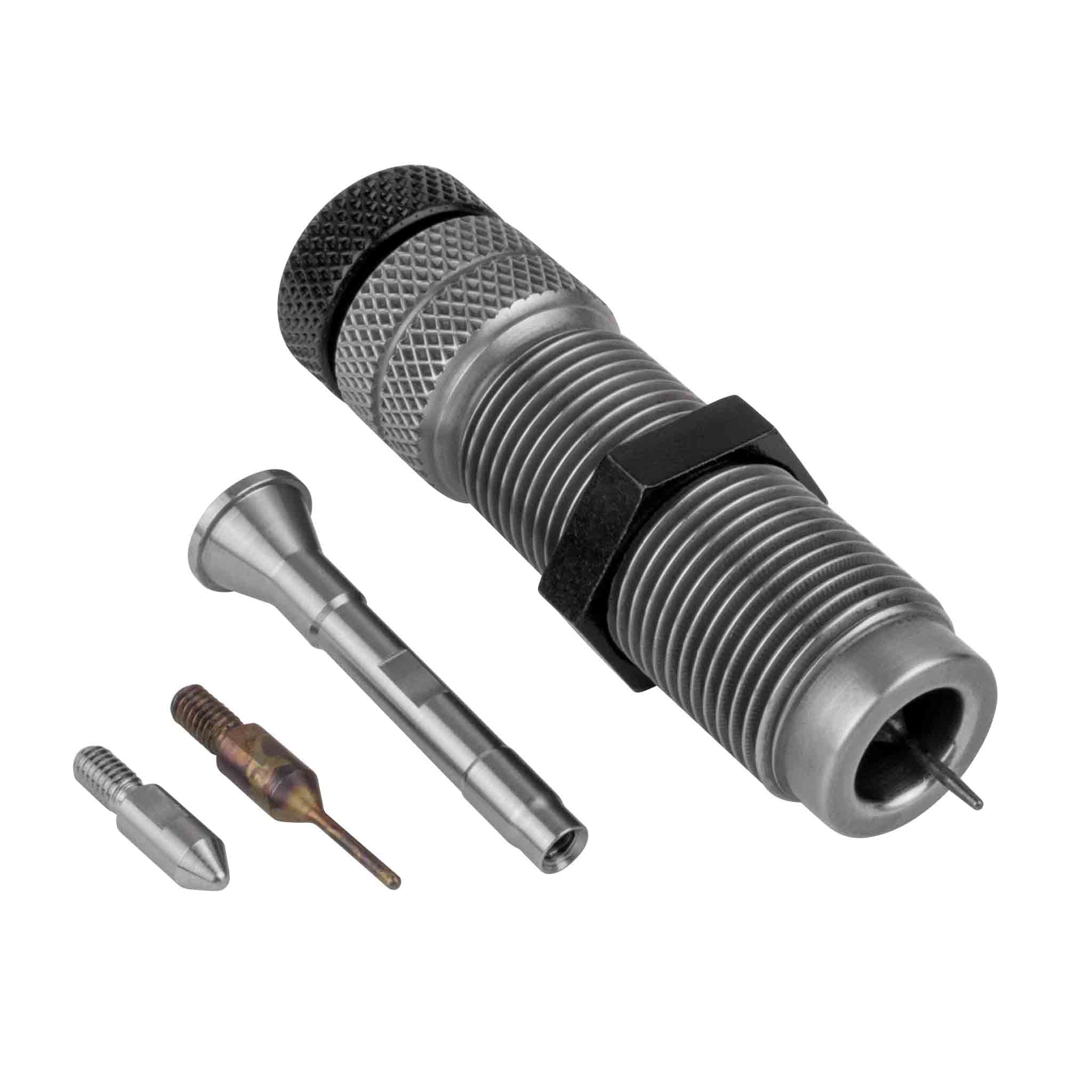

The Mighty Armory GOLD MATCH 6mm Creedmoor is a Precision Match Series Reloading Die offering full-length sizing back to SAAMI Spec with an included decapping mandrel shaft and decapping pin. One and done sizing will make sizing your cases effortless.
The Mighty Armory Gold Match 6mm Creedmoor Sizing & Decapping Die is precision-engineered for shooters who demand:
- True full-length SAAMI specification resizing
- Repeatable headspace control
- Exceptional concentricity
- Minimal runout
- Uniform neck tension
Ideal for long-range competitors, tactical precision athletes, and serious hunters using 6mm Creedmoor, this full-length sizing die restores fired brass from case head to mouth while preserving brass integrity and extending case life.
In contrast to generic 6mm Creedmoor dies with loose tolerances, the Gold Match design uses an engineered full-length bore paired with precision drop-in expander mandrels to promote:
- Predictable bullet seating
- Consistent chambering
- Reduced velocity variation
- Improved pressure consistency
Precision Sizing That Restores SAAMI Geometry
The Gold Match 6mm Creedmoor die features an extended full-length sizing profile that returns brass to proper SAAMI dimensions, correcting body and shoulder expansion without over-working the brass.
Benefits include:
- Reliable bolt closure
- Smooth feeding and extraction
- Uniform chamber pressures
- Longer case life
- Predictable headspace results
Adjust shoulder bump from zero to approximately -.005” by turning the die into or out of your press. Verify with a comparator for exact chamber fit.
Drop-In Mandrel for Controlled Neck Tension
Each 6mm Creedmoor Gold Match die ships with a drop-in expander mandrel shaft to match varying brass thickness and spring-back characteristics.
Mandrel Expander Shaft benefits:
- Consistent concentric neck expansion
- Uniform neck tension
- Better bullet grip
- Reduced runout
- Optimized pressure consistency across lots
Mandrel shafts are Swiss-machined from high-grade tool steel, Heat treated for long cycle life and Designed with perfect vertical alignment inside the die bore.
The internal threads accept either a Mighty Armory decapping pin or a Mighty Armory pointer guide (when decapping isn’t needed) to protect the threads of the shaft.
Ultra-Smooth Sizing Bore for Effortless Operation
The 6mm Creedmoor sizing bore is:
- Single-point cut for precision
- Finished to an ultra-smooth internal surface
- Hardened to approximately 60 Rockwell
This glass-smooth finish provides:
- Reduced sizing force
- Less brass galling
- Improved concentricity and runout
- Easier press operation
A high-quality bore finish is especially important when reloading precision cartridges like 6mm Creedmoor ready for long-range accuracy.
Heavy-Duty Decapping System With Primer Flicker Cap
The Gold Match 6mm Creedmoor Sizing Die includes the Mighty Armory Primer Flicker Cap Decapping Kit featuring:
- Two hardened decapping pins (.058" & .078" diameters)
This system helps eliminate:
- Primer pullback
- Press chute jams
- Primer “ringers”
Internal threading accommodates either hardened decapping pins or the pointer guide.
Crafted from premium heat-treated tool steel and precision CNC machined in the USA, the Gold Match 6mm Creedmoor sizing die is designed to stand up to extensive use while maintaining alignment and dimensional stability.
Key Sizing Die Features:
- Precision machined, American-made quality
- Hardened internal sizing surface for cycle durability
- Perfect vertical alignment for consistent results
- Concentricity held to approximately -.0005” at mouth and shoulder radius
- Modular, tool-free mandrel and decapping setup
Whether you’re loading batches for match day or prepping high-volume practice ammo, this die performs reliably and consistently.
Why Precision Reloaders Choose the Mighty Armory 6mm Creedmoor Die
- True full-length SAAMI spec resizing
- One-step size and decap process
- Four precision drop-in mandrels included
- Adjustable shoulder bump (0 to -.005”)
- Ultra-smooth 60 Rockwell bore finish
- Hardened tool steel construction
- Modular, tool-free design
- Primer Flicker decapping system
- Concentricity held to -.0005
- Precision machined to tight tolerances
- Made in the USA
- Built for minimal runout and consistent performance
Mighty Armory rifle die designs are precision machined to tight tolerances, ensuring consistent and uniform sizing and concentricity of the case.
RESULTS WILL BE BETTER THAN FACTORY LOADS
Case Lube Recommendations
For Single Stage or Turret Presses: We recommend a case sizing wax applied by your fingers.
For Progressive Presses: We recommend PEG75 lanolin spray.
Learn More About Setting Headspacing
For detailed setup guidance and performance insights, view the Mighty Armory Gold Match Rifle Sizing Die demonstration on YouTube.
