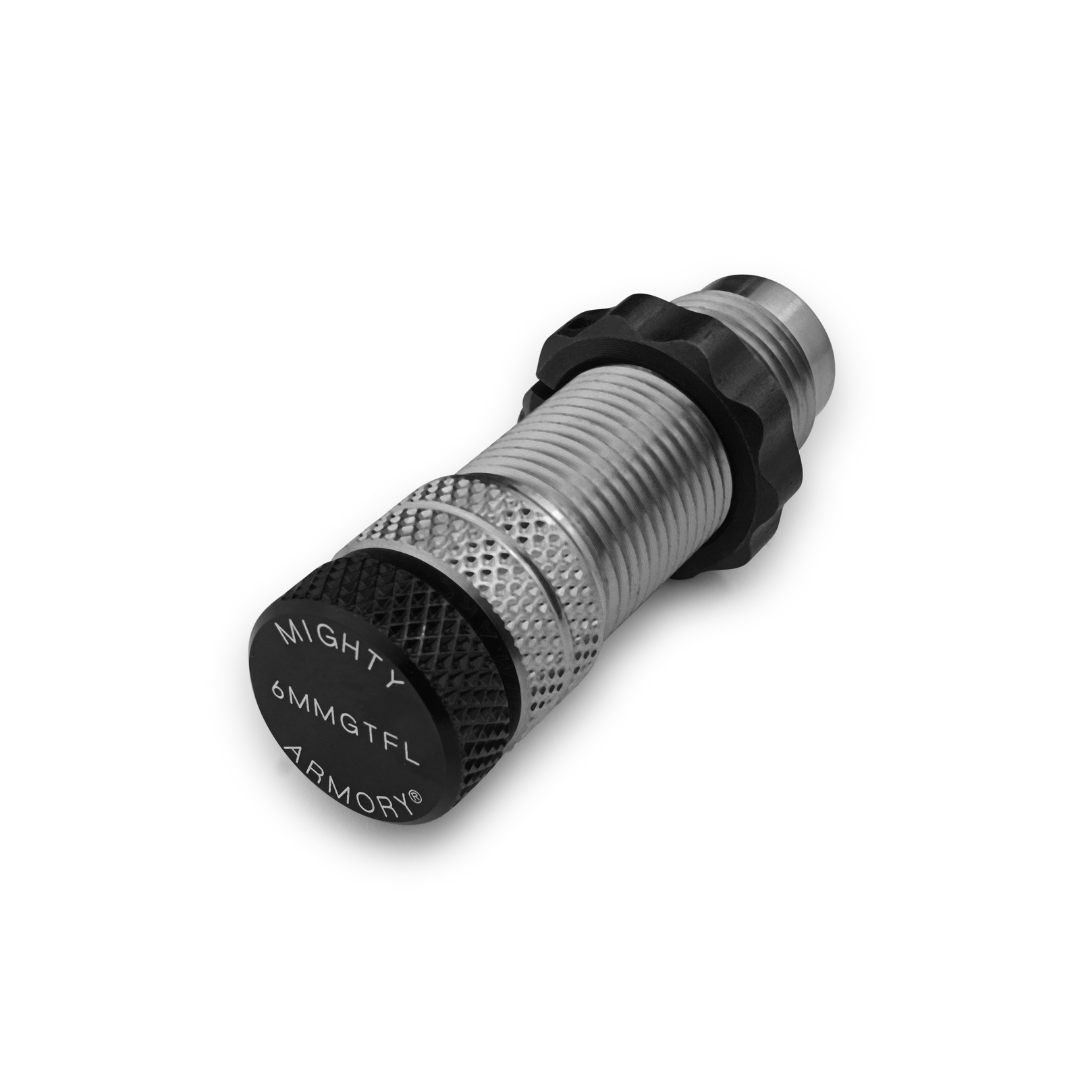

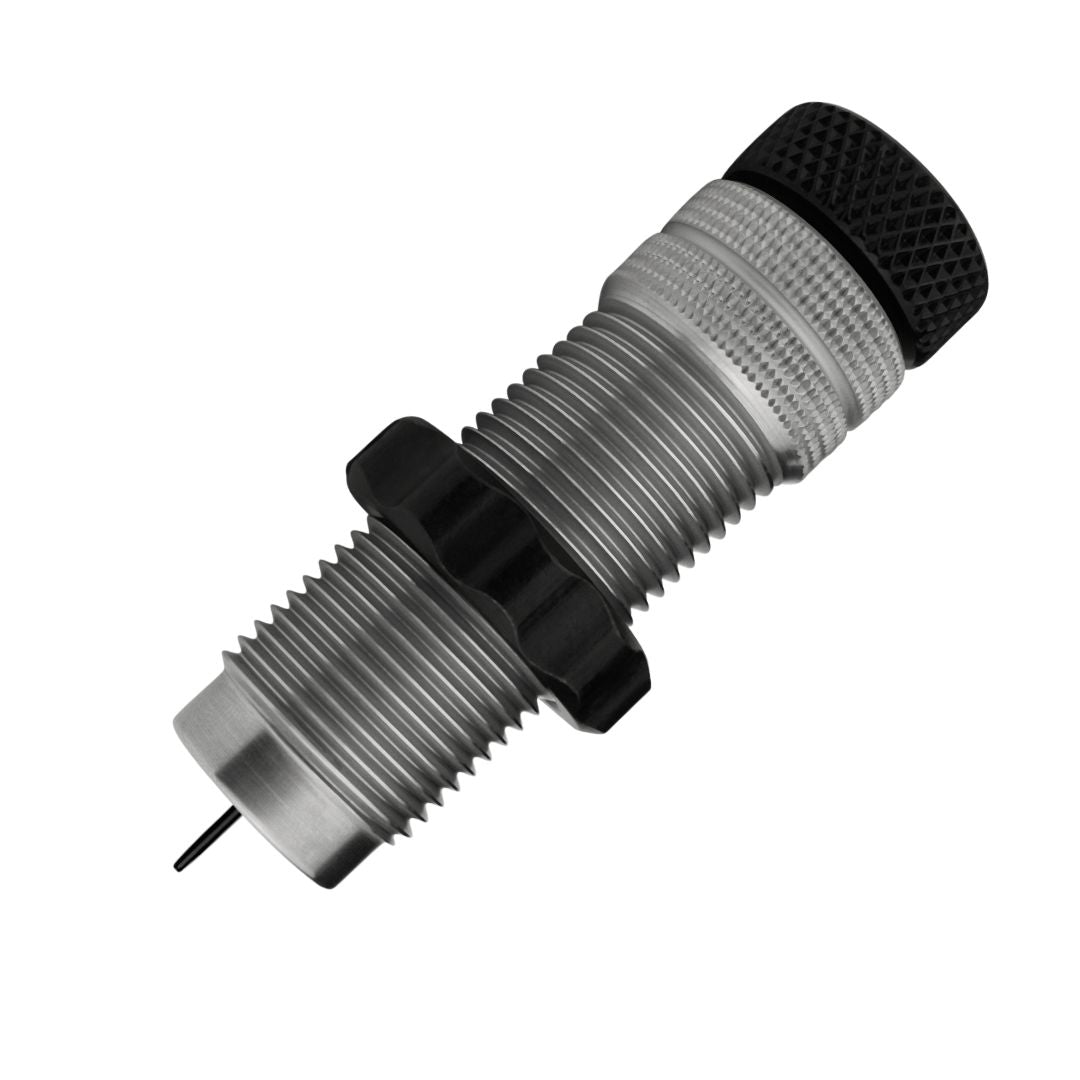

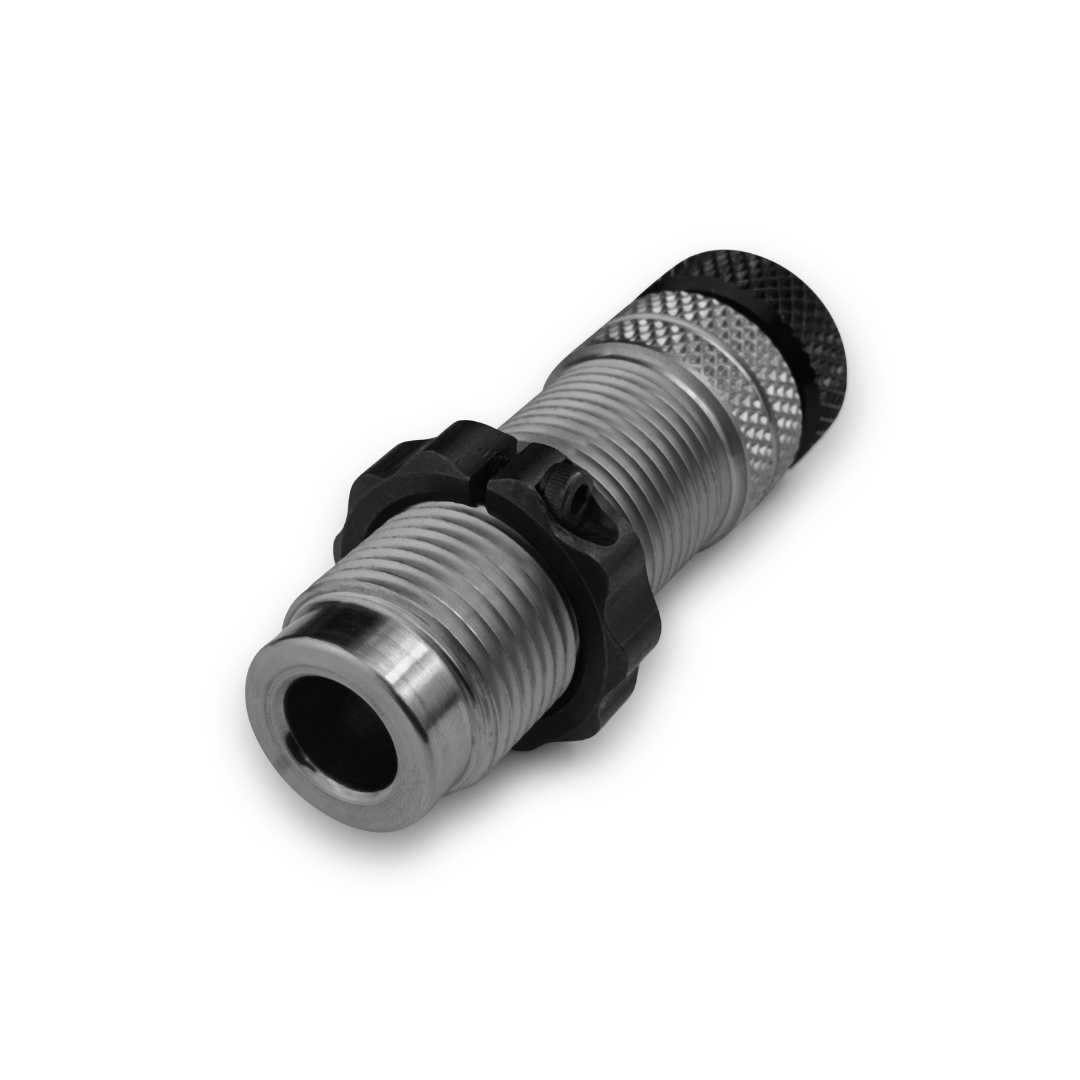

Precision Sizing for 6mm GT Competition Reloaders
The Mighty Armory Gold Match 6mm GT sizing and decapping die is engineered to restore fired brass to proper SAAMI geometry from case head through the shoulder and neck delivering consistent headspace control, repeatable neck tension, and smooth chambering for serious precision shooters.
With simple die adjustment in your reloading press, you can precisely control shoulder set-back and maintain uniform case geometry across multiple load cycles.
Built specifically for precision rifle competitors and long-range shooters running 6mm GT in bolt-action platforms where consistency is everything.
Why Consistent Full-Length Sizing Is Critical for 6mm GT
6mm GT was designed for precision competition. It operates at pressures and tolerances where minor inconsistencies in shoulder position or base diameter can affect:
- Bolt closure feel
- Case headspace uniformity
- Vertical dispersion at distance
- SD/ES variation
- Brass longevity
When brass is fired, it expands at the web, shoulder, and neck based on chamber dimensions. If that deformation is not corrected uniformly, reloaders can experience:
- Inconsistent bolt lift
- Erratic pressure signs
- Reduced brass life
- Variability in point of impact
The Gold Match 6mm GT full length sizing die returns brass to controlled SAAMI Spec geometry while minimizing unnecessary working of the case neck.
Engineered for True SAAMI Geometry Restoration
This 6mm GT sizing die features an extended full-length sizing surface that corrects case expansion at the base, shoulder, and neck without partial resizing, neck resizing or inconsistent body contact.
Resizing back to SAAMI specification supports:
- Consistent chamber fit
- Stable headspace measurements
- Predictable pressure curves
- Reliable extraction
- Long-term brass durability
- Shooting Accuracy
Neck sizing alone does not correct case web expansion or shoulder growth. For precision rifle competition and cross-rifle compatibility, full length resizing provides the most reliable foundation.
Precision Machined From Heat-Treated Tool Steel
Every Gold Match 6mm GT die is:
- 100% CNC machined in the USA
- Produced from high grade tool steel
- Heat treated to 60 Rockwell
- Single-point cut for ultra-smooth internal geometry
- Finished with a precision 5-bore internal surface
The result is a hard, consistent sizing surface that maintains dimensional stability over extended cycle counts.
Concentricity is maintained to approximately -.0005 at the case mouth and shoulder transition, supporting uniform bullet alignment.
A smooth internal bore finish is critical when reloading 6mm GT for competition where even small headspace variations can influence vertical spread.

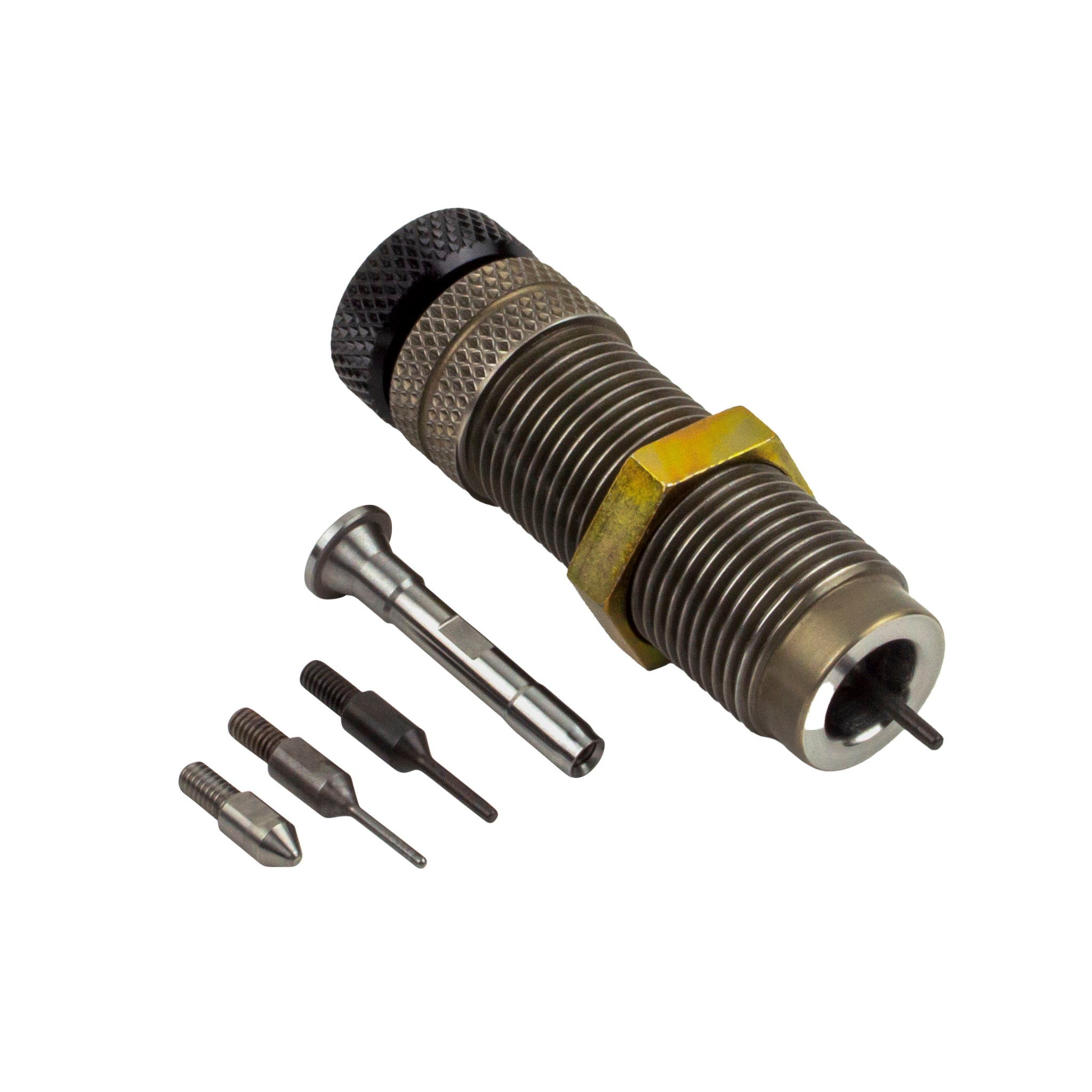

Drop-In 6mm GT Mandrel Expander Shaft System
The 6mm GT sizing die includes one Swiss-machined drop-in mandrel expander shaft, heat treated to approximately 50 Rockwell for durability and strength.
The mandrel system:
- Promotes uniform neck expansion
- Supports consistent bullet seating depth
- Reduces neck tension variability
- Accepts either a decapping pin or protective pointer; a guide to protect the shaft threads
The mandrel shaft seats concentrically inside the die bore using a three-point contact system for consistent alignment throughout the stroke. This modular system allows tool-free maintenance and reliable lockup.
Full Length Size and Decap in a Single Stroke
Process your 6mm GT brass efficiently with one-pass sizing and decapping.

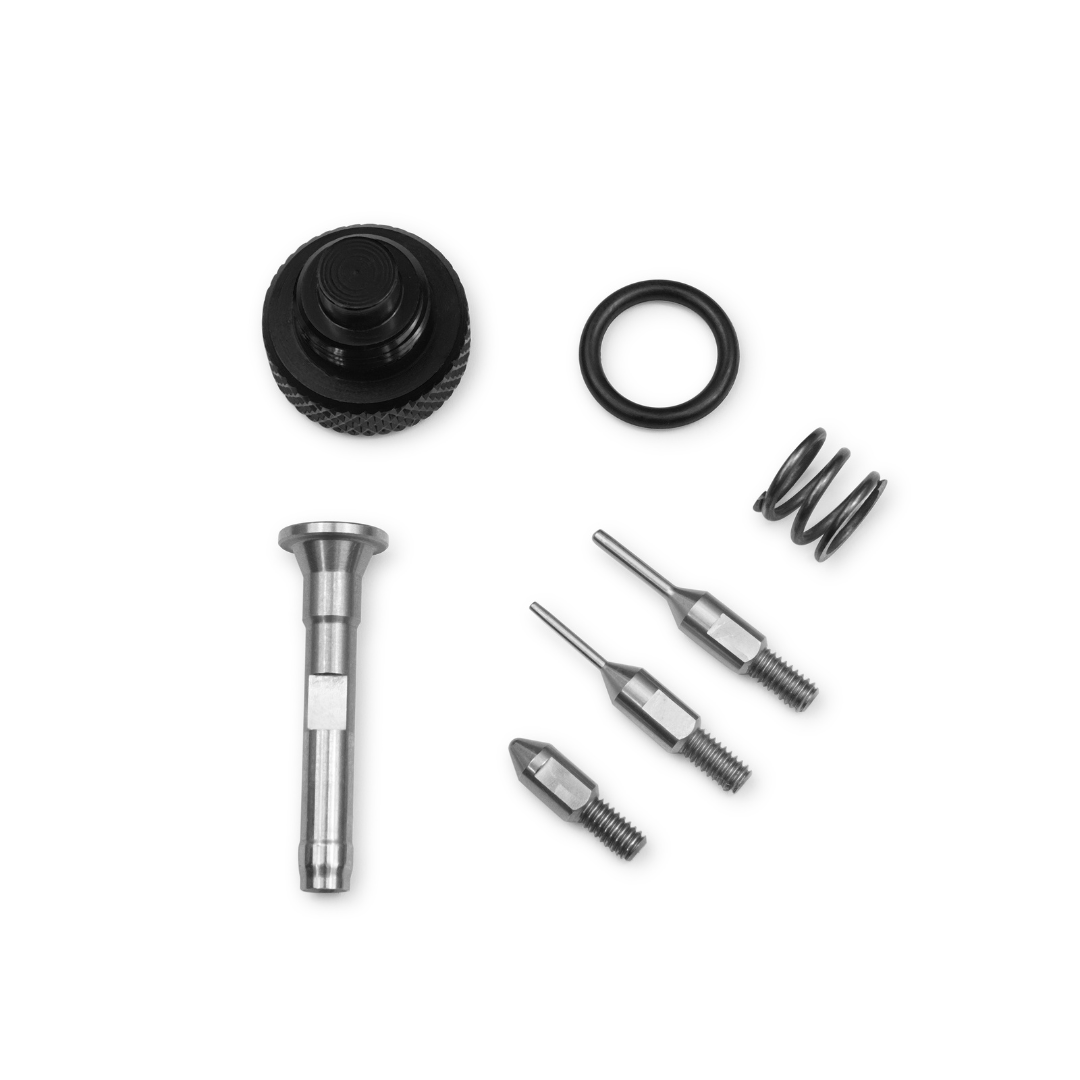

The die includes:
- Primer flicker cap with Spring-loaded decapping assembly
- Two .078” decapping pins
- Long-cycle durability design
The spring decapping mechanism reduces primer pullback and minimizes the risk of press chute jams.
Shoulder bump can be precisely adjusted from zero to approximately -.005” by turning the die within your press allowing fine tuning for individual chamber fit.
Key Advantages of the 6mm GT Gold Match Die
- True full length 6mm GT resizing
- Adjustable shoulder bump up to -.005”
- Restores brass to SAAMI geometry
- Precision-machined heat-treated tool steel
- Ultra-smooth 5-bore internal finish
- Concentricity held to -.0005
- Modular mandrel design
- Built for high-cycle competition use
Performance Impact on Precision Loads
Full length resizing the case back to SAAMI Spec measurements has great benefits directly contributing to:
- Stable headspace measurement
- Lower velocity variation
- More predictable pressure behavior
- Consistent bolt closure
- Improved brass service life
- Improved shooting accuracy
Sizing 6mm GT brass with consistent geometry establishes the mechanical foundation required for low SD/ES loads and repeatable long-range performance. RESULTS WILL BE BETTER THAN FACTORY LOADS.
Case Lubrication Guidance
For Single Stage or Turret Presses: Apply high-quality case sizing wax by hand.
For Progressive Presses: Use PEG75 lanolin spray for smooth high-volume operation.
Proper lubrication is required for smooth full length resizing.
Learn More
For additional setup instructions and performance demonstrations, watch the Mighty Armory Gold Match Rifle Sizing Die overview on YouTube or read the blog about the benefits of full length sizing rifle cases.
