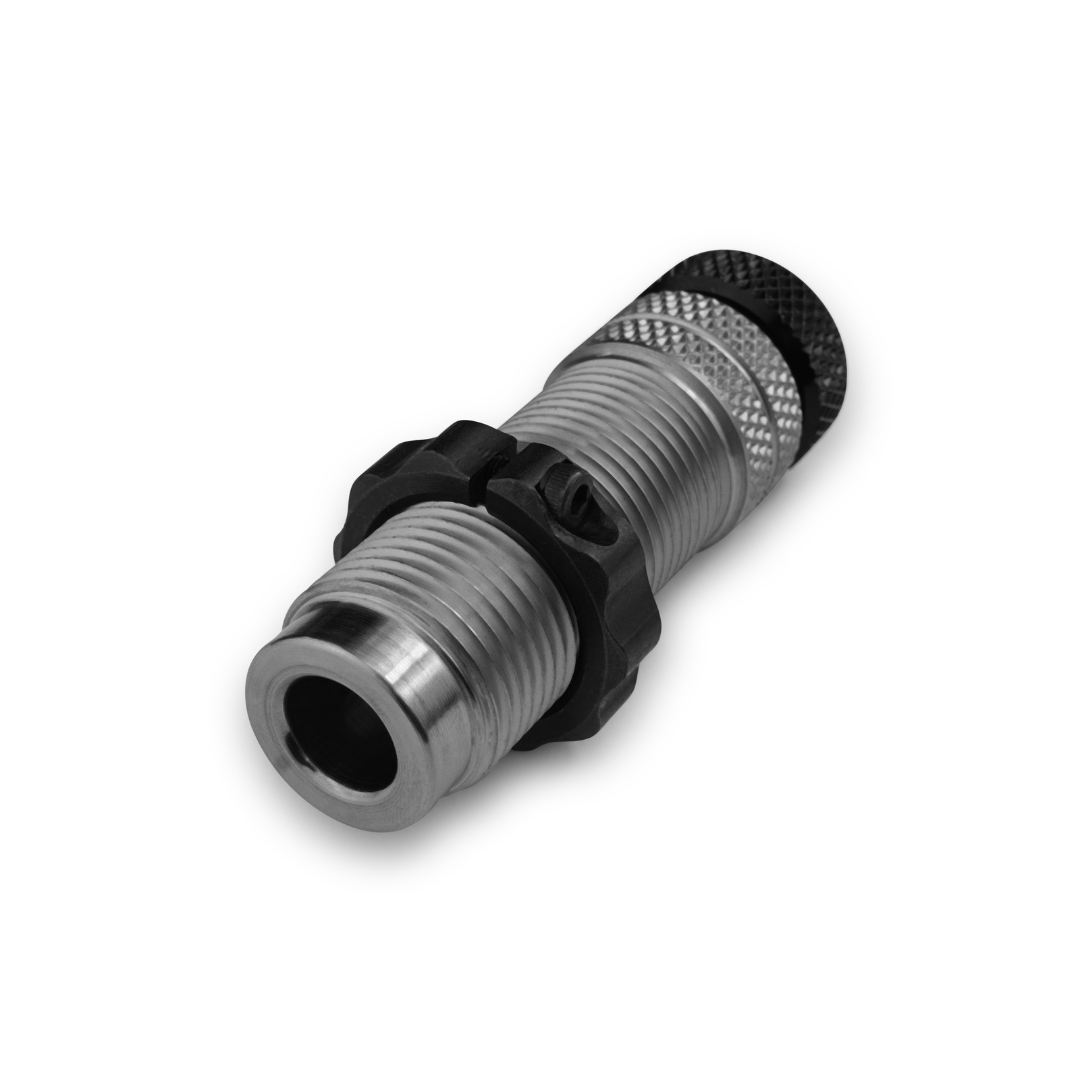

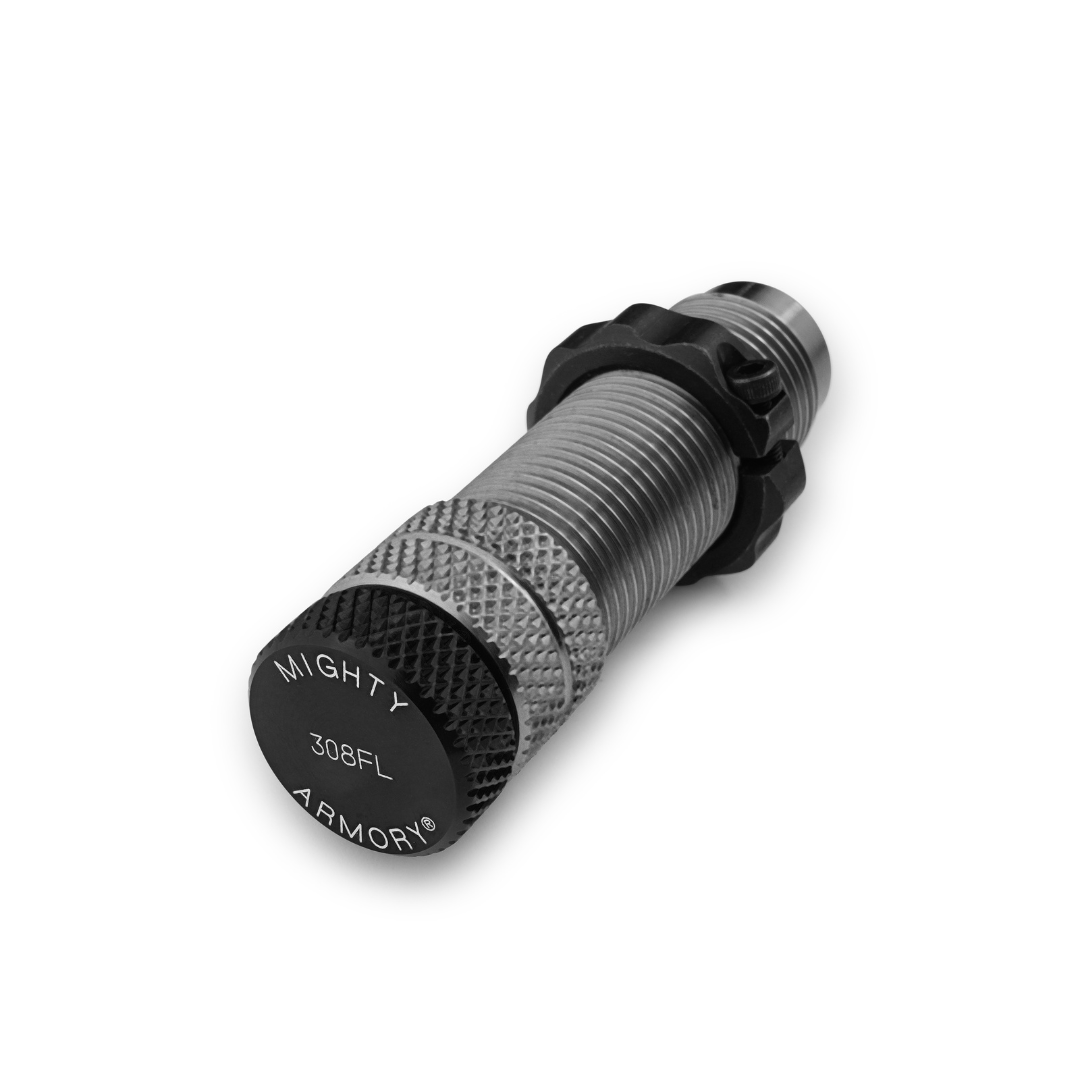

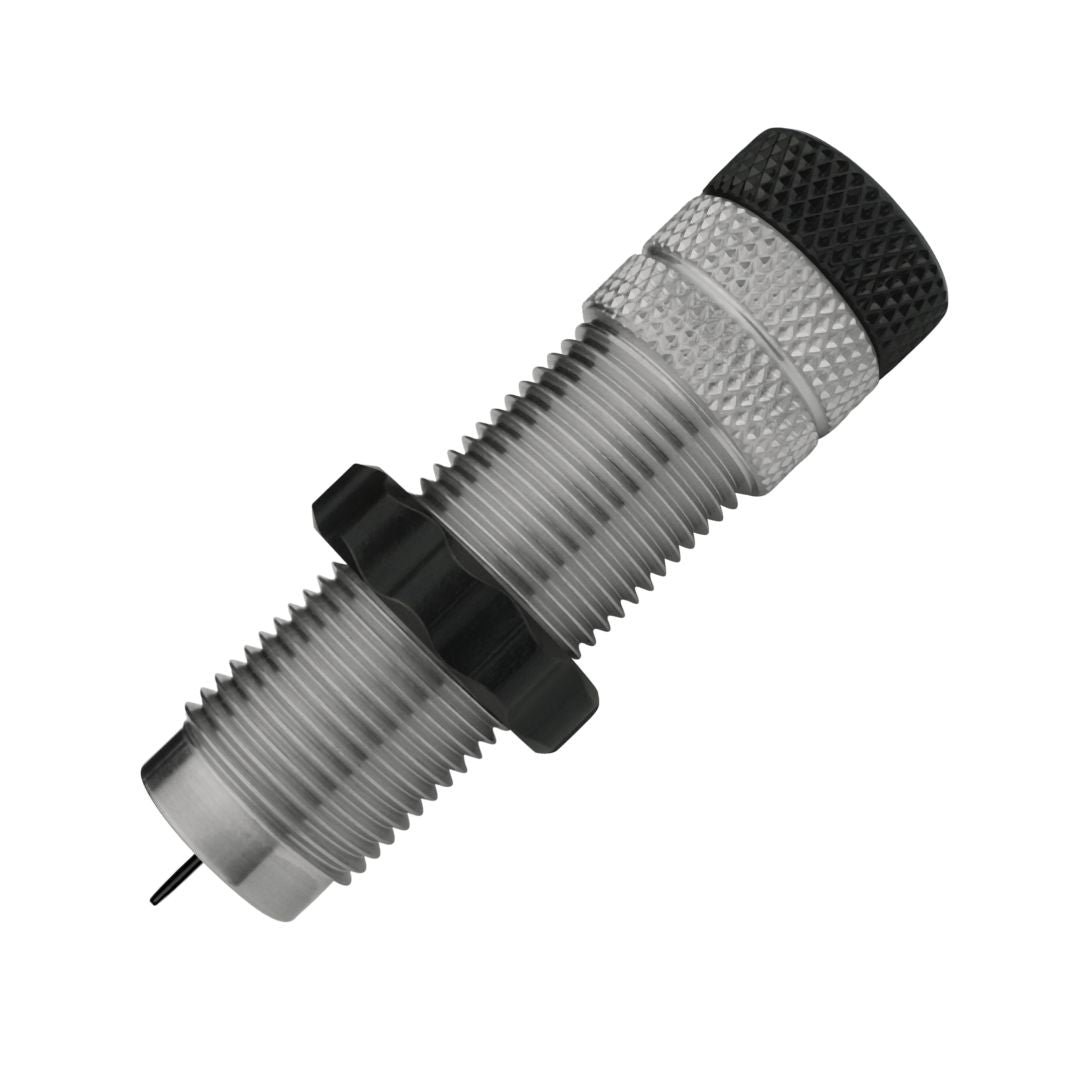

The Mighty Armory GOLD MATCH .308 Win Sizing Decapping Die is a Precision Match Series Sizing Die designed bring fired .308 brass back to true SAAMI specification from the case head to the neck with simple die adjustment. Designed for precision rifle reloaders who demand consistent chambering, controlled headspace, uniform neck tension, and dependable performance in both bolt-action and semi-automatic rifles.
The .308 Sizing, Decapping die offers full-length headspace and concentric sizing to SAAMI specification, easily adjustable with a simple turn of the die on your press. Easily set from zero up to -.005 shoulder bump back.
Why Full Length Sizing Matters for .308 Winchester
Reloading .308 Winchester brass requires precise control of headspace, base diameter, and neck geometry to maintain safe pressures and smooth chambering across different rifle platforms. Fired cases expand differently depending on chamber dimensions, load pressure, and firing conditions. Without proper resizing, reloaders may experience:
- Tight or inconsistent chambering
- Feeding and extraction issues
- Pressure variations
- Reduced brass life
- Inconsistent velocity spreads
The Gold Match .308 Winchester sizing die is engineered to resize fired brass back to SAAMI spec geometry from the case head through the shoulder and neck. This restores proper chamber fit and ensures repeatable feeding and extraction in both precision bolt guns and gas-operated platforms.
Full Length Sizing to SAAMI Specification
The .308 Winchester sizing die features an extended, full length sizing bore that brings fired cases back into SAAMI measurements while preventing under-sizing at the base or over-working the neck and shoulder.
- Resizing to SAAMI spec provides:
- Proper and repeatable chamber fit
- More consistent case pressure
- Cleaner, more efficient powder burn
- Reliable chambering and extraction
- Extended brass service life
Full length sizing is recommended for all rifle brass, especially when loading for multiple rifles or semi-automatic platforms. Neck sizing alone cannot correct base expansion or chamber-specific deformation and often leads to feeding issues over time.
Precision Machined High Grade Steel to Tight Tolerances
Mighty Armory Gold Match rifle sizing dies are precision machined from premium tool steel to tight tolerances to ensure uniform sizing and consistent concentricity. A hard, smooth sizing surface that is consistent in sizing, especially head-spacing is of the utmost importance when reloading precision.
Each .308 Winchester sizing die features:
- Precise vertical alignment
- Single-point cut internal finish
- Extremely smooth 5-bore internal surface finish
- Heat treated to 60 Rockwell hardness
The extended sizing profile maintains consistent geometry from the case head to the neck, while concentricity is held to approximately -.0005 at the case mouth and shoulder radius, for consistent bullet alignment and repeatable accuracy.

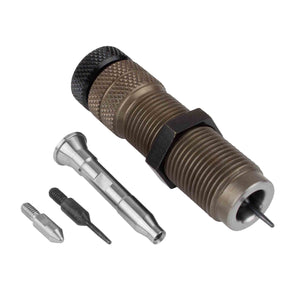

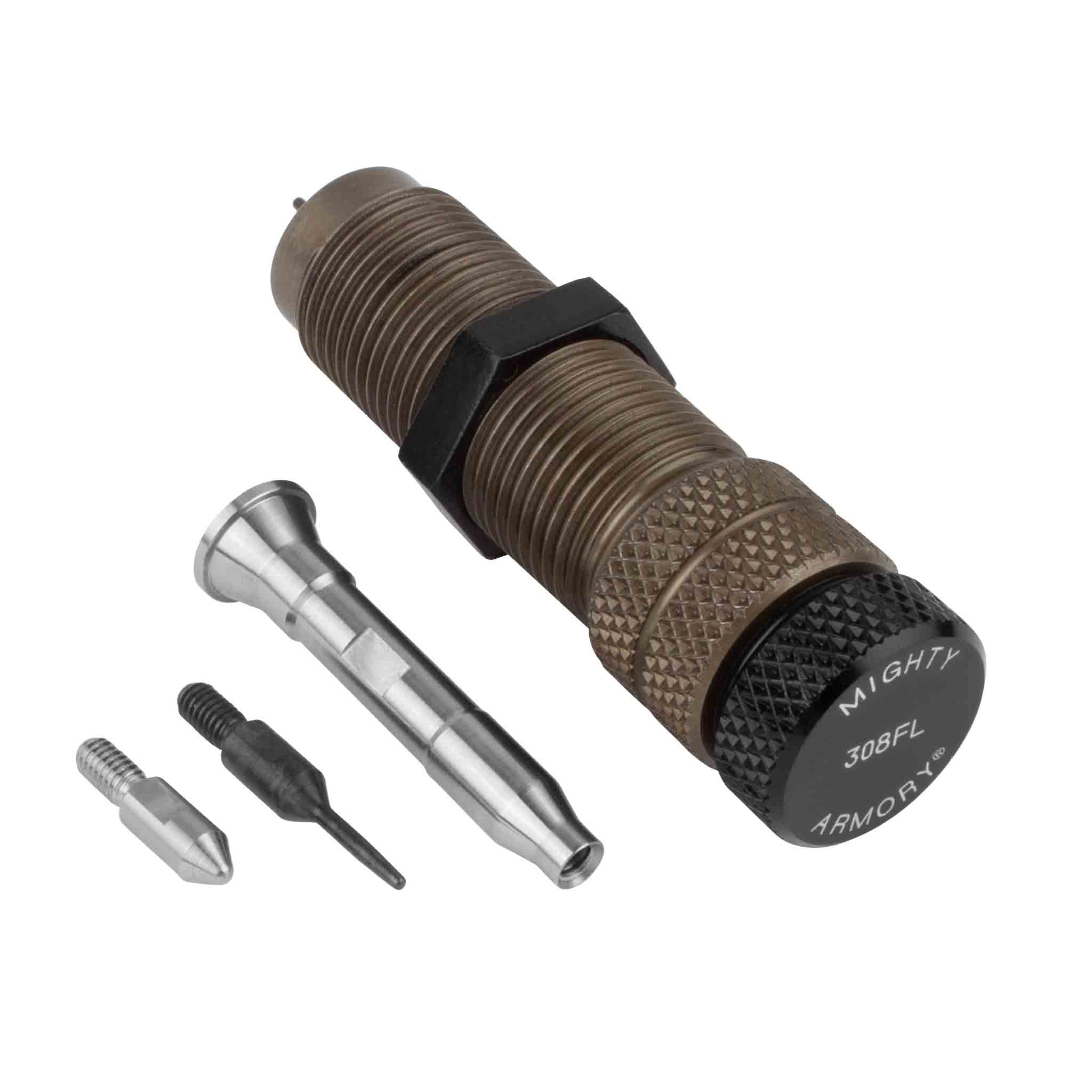

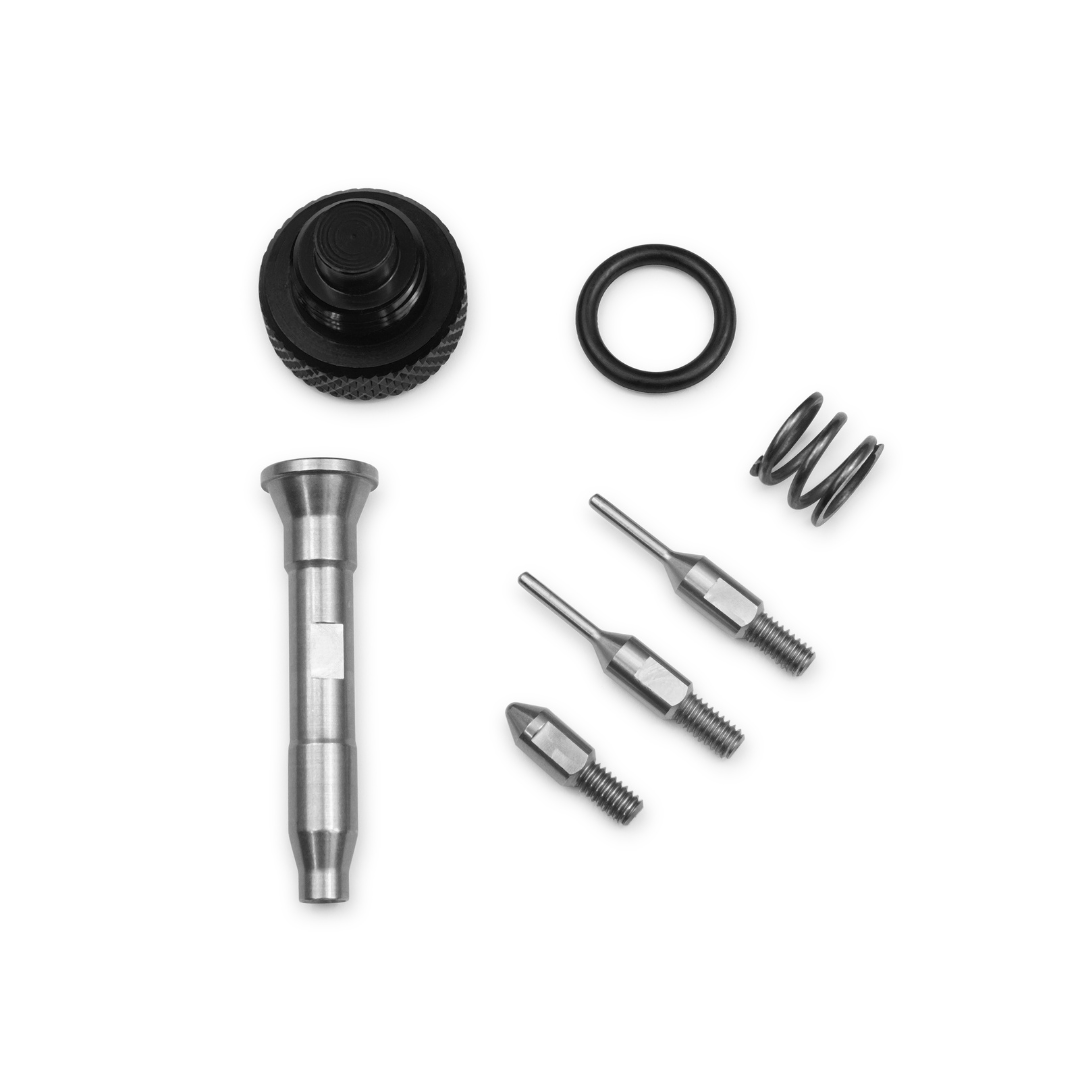

Drop-In Mandrel Expander Shaft
The .308 Winchester sizing die includes a Swiss-machined drop-in mandrel shaft, heat treated to 50 Rockwell for strength and durability. The mandrel expander shaft promotes uniform case mouth expansion for reliable and repeatable bullet seating.
The internal threads accept either:
- a Mighty Armory decapping pin, or
- a protective pointer that shields shaft threads and helps guide the case into the die
The mandrel shaft seats concentrically within the die bore with three points of contact, creating consistent alignment throughout the sizing stroke and secure lockup with the cap.
Full Length Size and Decap in One Pass
The Gold Match .308 Winchester sizing die resizes and decaps in a single operation for efficient case processing.
The one-and-done sizing of your .308 Win brass will be effortless. Easily decap and resize over a million cycles. Adjust the die in your press by turning it up or down to easily set shoulder bump from zero to -.005.
Resizing cases with the Mighty Armory .308 Sizing Die will yield the precision and consistency you're looking for.
Key Benefits
- True full length sizing with shoulder bump adjustment up to -.005”
- Restores brass to SAAMI specification
- 100% CNC machined in the USA
- Premium heat-treated tool steel construction
- Smooth 5-bore internal finish
- Concentricity held to -.0005 at the mouth and shoulder
- Modular design with no tools needed
- Built for long-term durability under high cycle counts
Performance Results
Consistent sizing geometry influences:
- Chamber pressure consistency
- Cleaner powder combustion
- Reliable feeding and extraction
- Reduced velocity variation (lower SD/ES)
- Increased brass longevity
Sizing with the .308 Winchester Gold Match precision die creates uniform brass geometry, the foundation of consistent, accurate ammunition for precision shooting, hunting, and competition use.
“Get Tough Stay Mighty”
- "World's Toughest" Reloading Dies
- Precision Reloading Tools
- Made in the USA
