Mighty Armory Primer Pocket Swage Set
Mighty Armory Primer Pocket Swage Set
Mighty Armory Primer Pocket Swage Set

Mighty Armory Primer Pocket Swage Set

Mighty Armory Primer Pocket Swage Set

Mighty Armory

$74.99
$74.99
Sale Sold out
Shipping calculated at checkout.
Mighty Armory Primer Pocket Swage Set includes the swage die and swages for both large and small primer pockets. Set includes the case hold down die, shaft with hold down tip and large and small sw...Read more
  • American Express
  • Discover
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Product Description

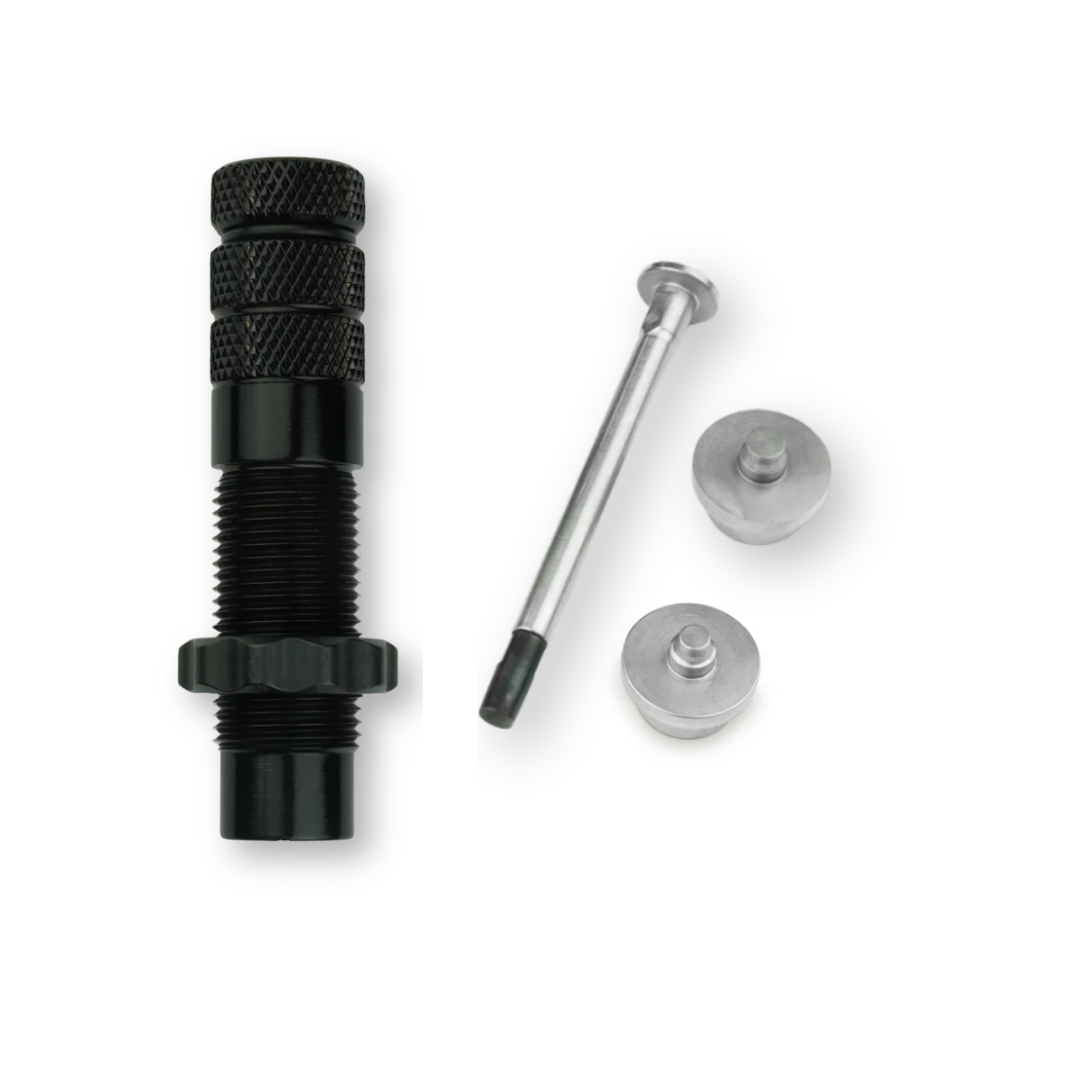

Mighty Armory Primer Pocket Swage Set includes the swage die and swages for both large and small primer pockets. Set includes the case hold down die, shaft with hold down tip and large and small swage for all size primer pockets.

Recommended for use on a single stage or turret press.

Fast and Easy Primer Pocket Swaging

The Mighty Armory Primer Pocket Swager efficiently removes crimps from primer pockets. It is quick to set up and easy to use. Swage crimped military brass and commercial brass with ease. Achieve a uniform and consistent primer pocket before priming.

Designed for Single Stage and Turret Presses

Specifically designed for use on single stage and Turret presses, Mighty Armory’s Primer Pocket Swage Set is very simple to set up. Simply set up the hold down die and replace the case holder with the large or small swage.

Precision CNC Machined Reloading Die

The Mighty Armory reloading die is precision machined to ensure perfect vertical alignment on your press. The shaft and pins are machined from high grade tool steel and heat-treated to over 60 Rockwell hardness for maximum strength and durability.

“See, Feel & Shoot the Difference”

  • "World's Toughest" Reloading Dies
  • Precision Reloading Tools
  • Made in the USA

Mighty Armory

What's Included

Popular Questions

What is a Case Hold Down Die?

A case hold down die is used for swaging a primer pocket or for priming. When swaging, the tip of the shaft holds the bottom of the case down against the swage

Instructions

Step 1: Refer to the Magnum Case Hold Down Die instructions to set up your die, and screw in the hold down tip on the end of the shaft.

Step 2: Place the primer pocket swage on the ram in place of the shell holder. Ensure you are using the correct swage size (small or large) depending on the size of the primer pocket you are swaging.

Step 3: Set a case over the swage and raise the ram up all the way.

 Step 4: Turn the die down until the hold down tip makes contact with the floor of the case. Tighten the die down 1/4 turn from there.

Step 5: Push the press lever down to drive the swage into the primer pocket. Check the swage. If more is required on the case, then turn the die down in small increments until the desired swage is achieved. Lock the die into place.

View full details
Mighty Armory Primer Pocket Swage Set

Mighty Armory Primer Pocket Swage Set

$74.99
$74.99
Sale Sold out
Mighty Armory primer pocket swaged cases

Uniform Primer Pocket

Achieve a uniform radius around the primer pocket, fast and easy with no unwanted brass filings. Consistent primer pocket swaging will result in proper primer tension to reload more accurate and reliable ammunition.

MIGHTY ARMORY

PRECISION MACHINED

All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

Learn More

SUPERIOR MATERIALS

We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

Learn More

MADE IN AMERICA

Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.

Learn More
;
