Mighty Armory SHORTY BULL Decapping Die for .17 to .20 Caliber

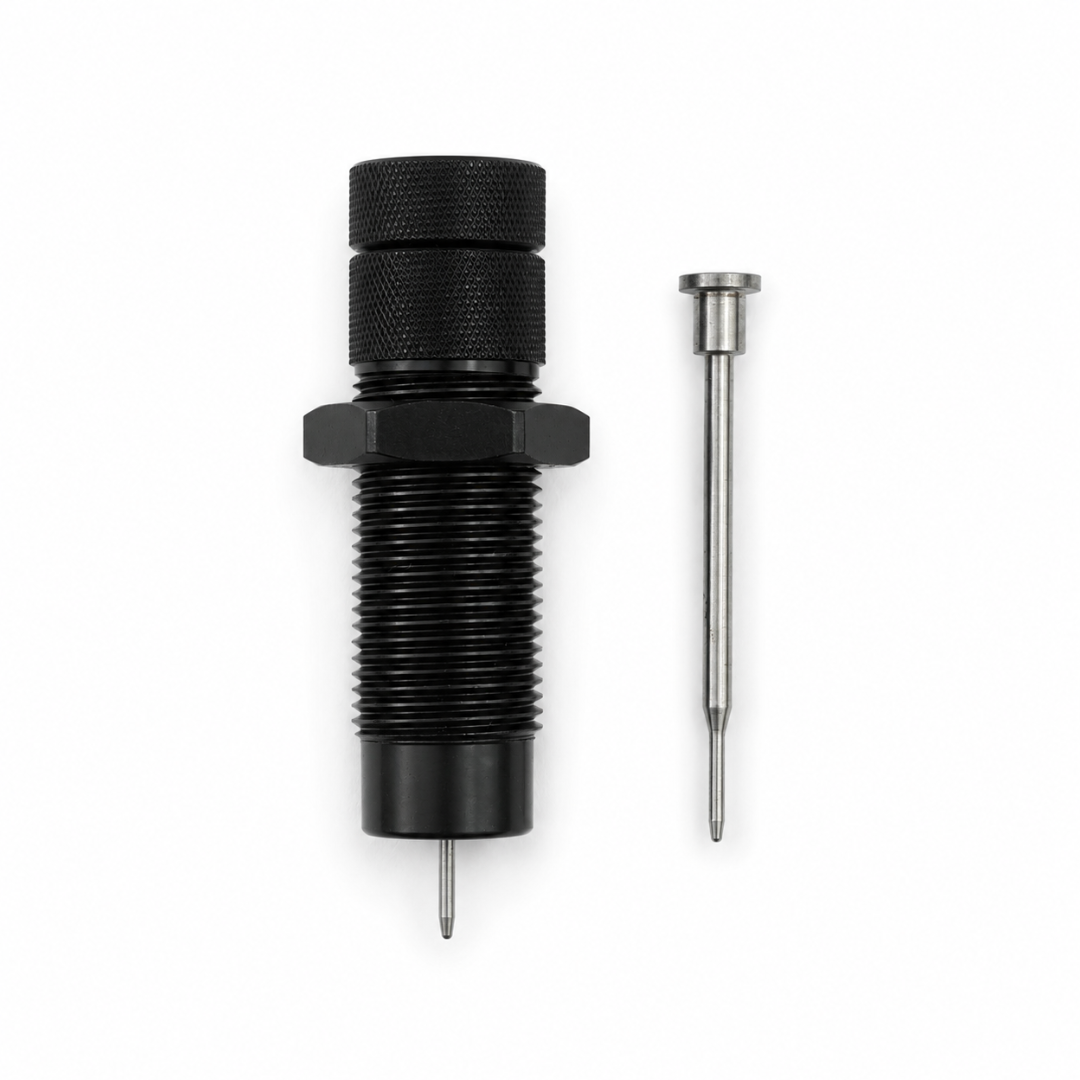

shorty bull decapping die for .17 caliber up to .20 caliber cases with standard .078" pin tip diameter

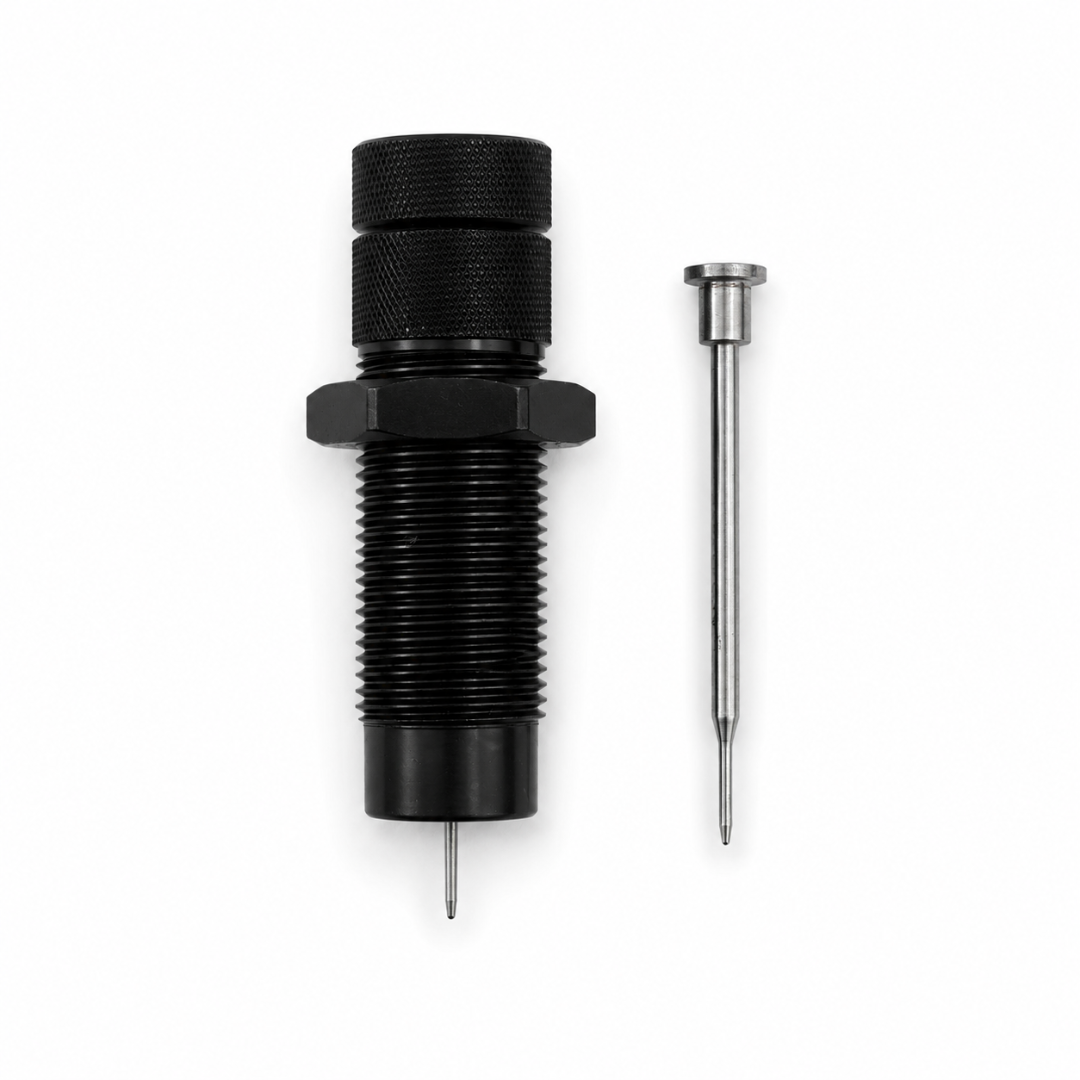

shorty bull decapping die for .17 caliber up to .20 caliber cases with .058" pin tip diameter
shorty bull decapping die for .17 caliber up to .20 caliber cases with standard .078" pin tip diameter
shorty bull decapping die for .17 caliber up to .20 caliber cases with .058" pin tip diameter

Mighty Armory SHORTY BULL Decapping Die for .17 to .20 Caliber

Mighty Armory SHORTY BULL Decapping Die for .17 to .20 Caliber

Mighty Armory

$49.95
$49.95
Sale Sold out
Shipping calculated at checkout.
For decapping .17 caliber to .20 caliber cases, this Shorty Bull Universal Decapping Die includes a one-piece thinner-stemmed shaft with decapping pin. Choose the size that suits your needs, eithe...Read more
Pin Size
  • American Express
  • Discover
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Product Description

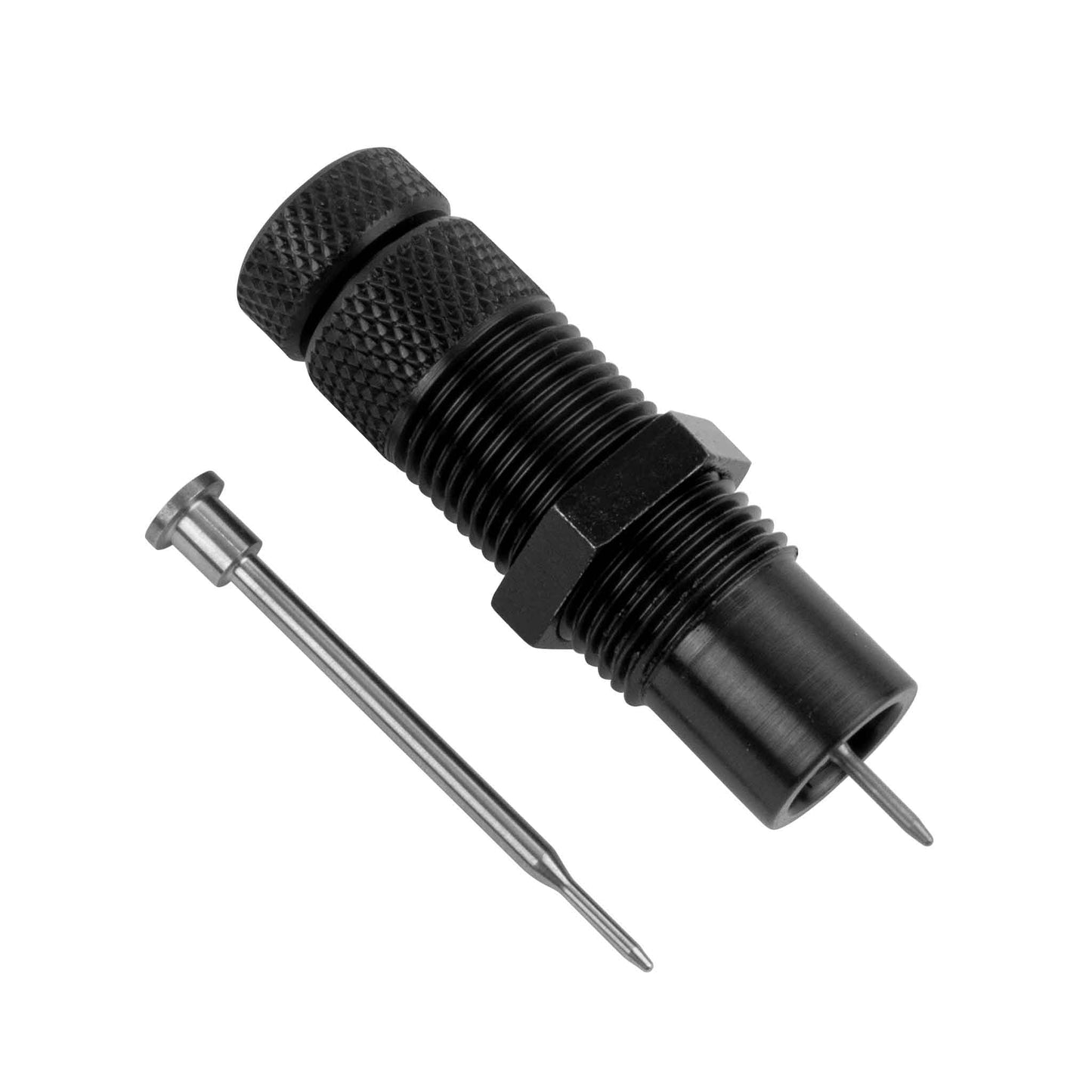

For decapping .17 caliber to .20 caliber cases, this Shorty Bull Universal Decapping Die includes a one-piece thinner-stemmed shaft with decapping pin.

Choose the size that suits your needs, either with .078" standard tip or .058" tip.

The decapping shaft is .150" diameter, slimmer than our typical Universal decapping die shafts. The thinner shaft will allow fitting into the narrow neck of the .17 caliber to .20 caliber case.

The die bore diameter is .550. This die will deprime a large spectrum of cases from .17-.20 cal to 9mm Luger, up to .308 Win.

The body and cap are precision machined from steel with a hardened finish. Perfect vertical alignment in your press.

Shorter profile reloading dies are beneficial because the loader can see all the station dies while the press is operating and it allows for easy access to dies left and right of it. The short shaft adds rigidity and strength to the pin.

From inside out, this die is 100% hardened steel; extremely strong and will decap cases for years and years of reliability.

 “Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision Reloading Tools
  • Made in the USA

Mighty Armory

      What's Included

      Includes:

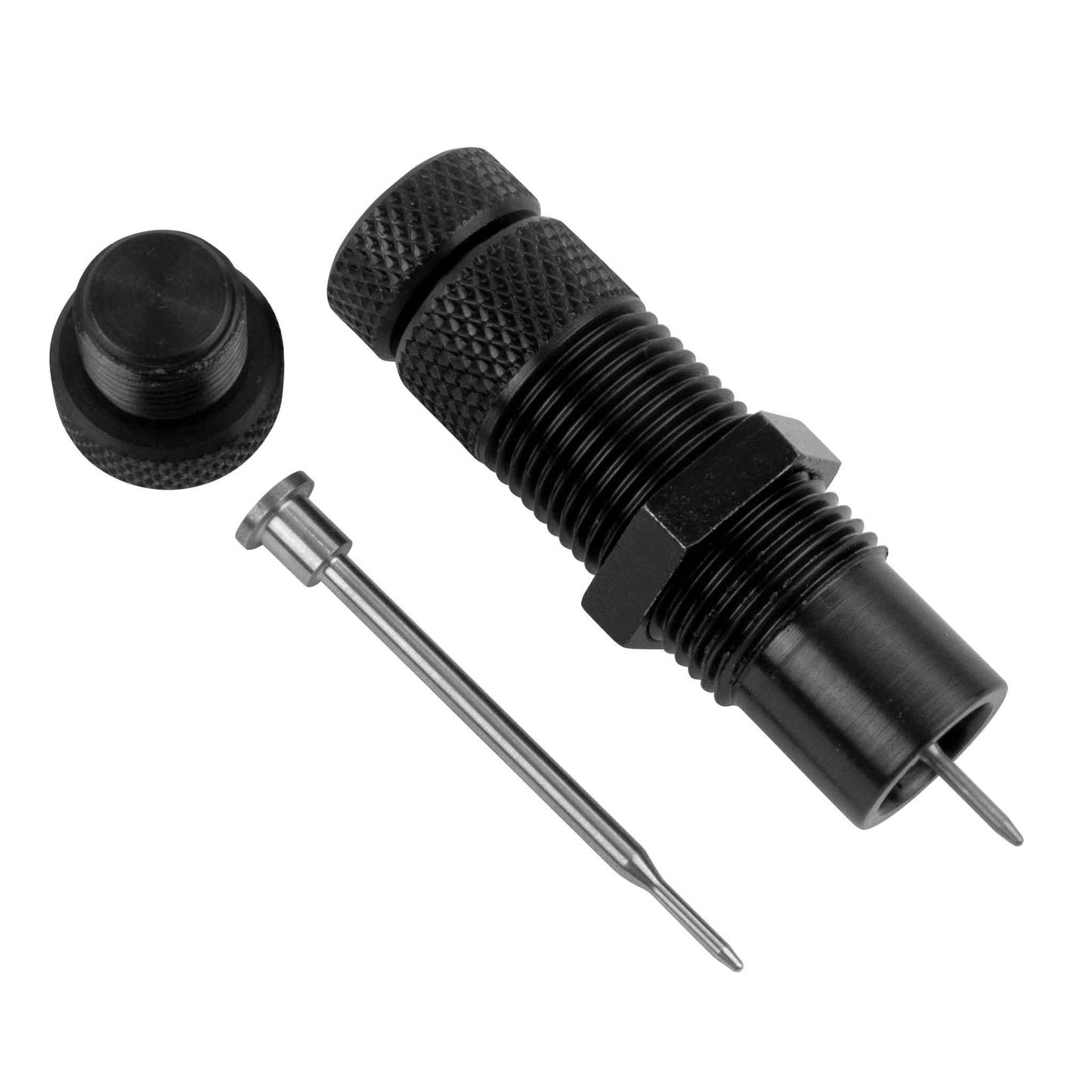

      - Mighty Armory Shorty Decapping Die with posted cap, in the event you want to swap for shat and pin for alternative case sizes

      - Mighty Armory thin one-piece shaft & pin for .17-.20 call all the way up to .308 case length

      Popular Questions

      What is the difference between the two versions of the Shorty Bull Decapping Die?

      • One version has a one-piece decapping shaft-pin and fully threaded cap specifically for decapping 17 caliber to 20 caliber cases.
      • The other version has a primer flicker cap and spring with the standard shaft for decapping up to .308 cases.
      • Both die bodies are exactly the same. The difference is the shaft and primer flicker cap mechanism.

      Can I purchase one die and the internal parts to convert it to decap 17 caliber up to .308?

      Instructions

      Click for the link to Shorty Bull Decapping Die Instructions

      Step 1: Drop the shafted pin into the die body.

      Step 2: Tighten the cap into the cap well with the spring. Strongly hand-tighten the cap.

      Step 3: Lower the tool head or raise the ram.

      Step 4: Turn the die into the tool head until the mouth of the die contacts the plate or shell holder. Back out ¼ turn.

      Step 5: Turn locknut to lock it down.

      If you're using the standard shaft with pin, add a touch of vibratite or loctite to the pin threads first then snug with a 3/16 wrench. Do not over-tighten.

      View full details
      shorty bull decapping die for .17 caliber up to .20 caliber cases with standard .078" pin tip diameter shorty bull decapping die for .17 caliber up to .20 caliber cases with .058" pin tip diameter

      Mighty Armory SHORTY BULL Decapping Die for .17 to .20 Caliber

      $49.95
      $49.95
      Sale Sold out

      Modular Design

      Two versions of the Shorty Bull Decapping Die exist: 1. the one-piece shaft-pin for decapping 17-20 caliber and 2. the standard diameter shaft and pin with a primer flicker cap and spring. Choose the version that suits your needs. Add on the alternate shaft/pin for complete versatility!

      Universal Decapping

      The one-piece shaft and pin is a narrow .150 diameter to decap cases 17 to 20 caliber. The .218 shaft and decapping pin is the best option for decapping 9mm luger up to .308 Win.

      Extreme Strength

      The Shorty Bull Decapping Die is precision machined from high-grade tool steel inside and out from the body and cap of the die to the shaft and pin. Will last a lifetime!
