The Mighty Armory Gauge Master .45 ACP Carbide Dies deliver SAAMI-spec sizing and crimping at a more affordable price. Built with a steel body and full-length carbide bore, Gauge Master Sizing and ...Read more
Bundle Options
  • American Express
  • Discover
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Product Description

The Mighty Armory Gauge Master .45 ACP Carbide Dies deliver SAAMI-spec sizing and crimping at a more affordable price.

Built with a steel body and full-length carbide bore, Gauge Master Sizing and Crimp Dies are designed to produce the precise, consistent results reloaders expect from Mighty Armory.

Eliminate glock bulge, no hourglass cases.

Use with or without lube.

The Gauge Master Sizing and Crimp Dies pair with our existing Flare Expander and Seating Dies, allowing you to build a complete measured reloading system at a significantly lower cost.

Pair with the Shorty Bull Dies, XMS Dies, or Super Duty Dies for decapping or hold downs.

Ideal for high-volume, high-speed processing or everyday personal reloading.

With a Guage Master Set, you will achieve rounds better than factory. Proper bullet tension, proper case diameters and single digit SD’s.

Features:

  • SAAMI-spec sizing
  • Full-length carbide
  • Eliminate Glock bulge and hourglass-shaped cases
  • Easy Setup
  • Proper case dimensions and bullet tension
  • Use with or without case lube
  • Compatible with Mighty Armory Flare Expander and Seating Dies
  • Pair with Shorty Bull, XMS, or Super Duty Decapping Dies

Available as a sizing and taper-crimp pair, with a Shorty Bull decapping die, or as part of a four-die setup.

Bundle + Set Offers:

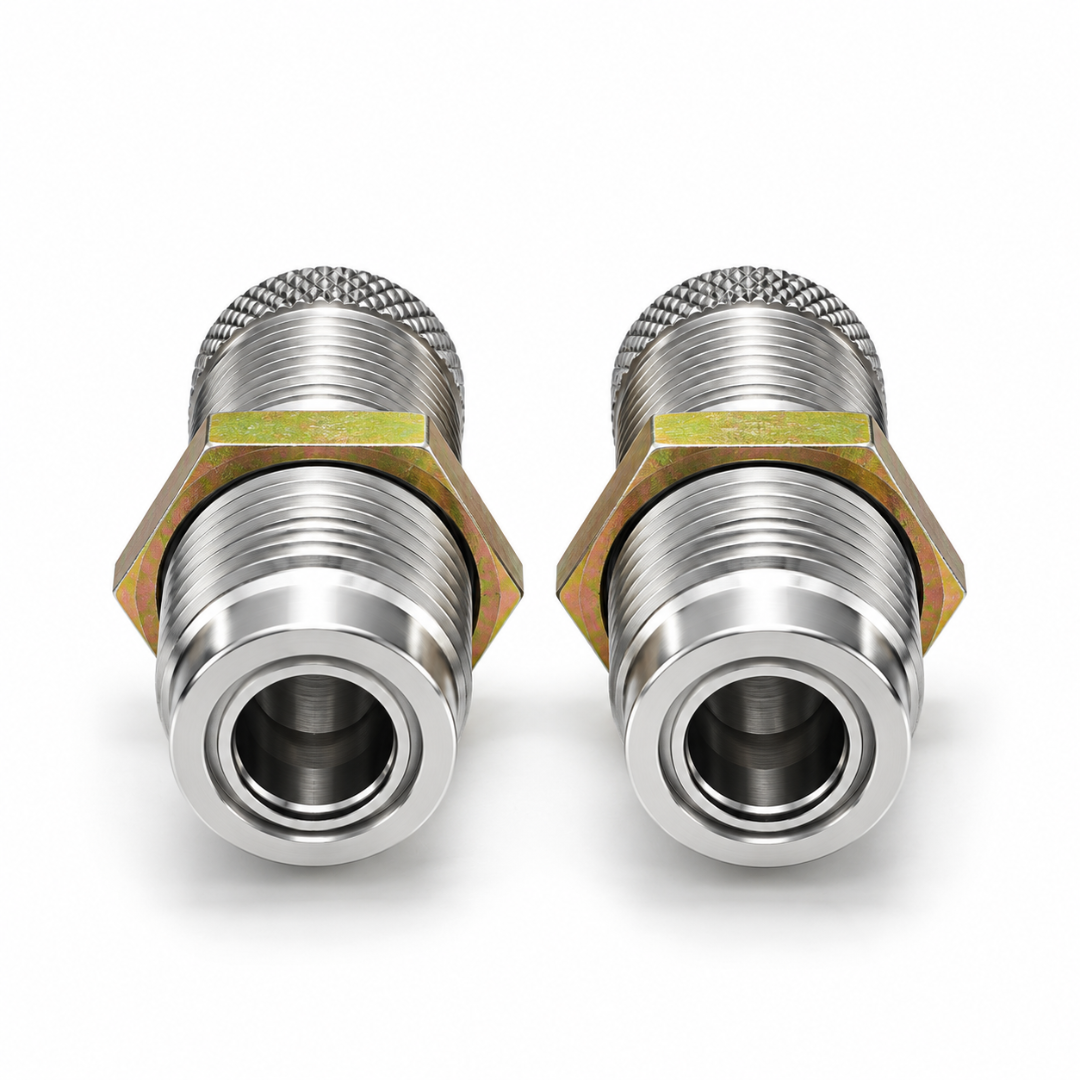

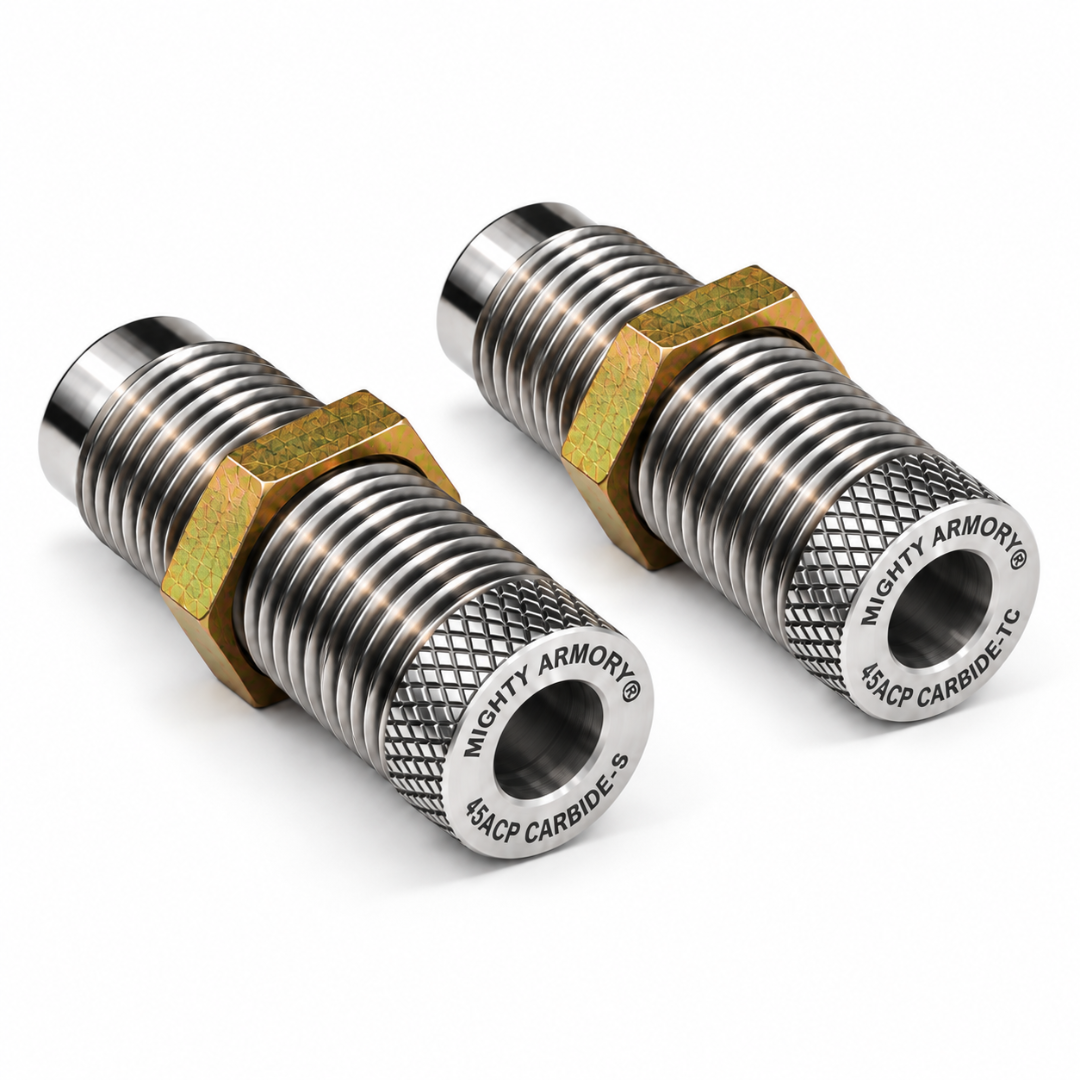

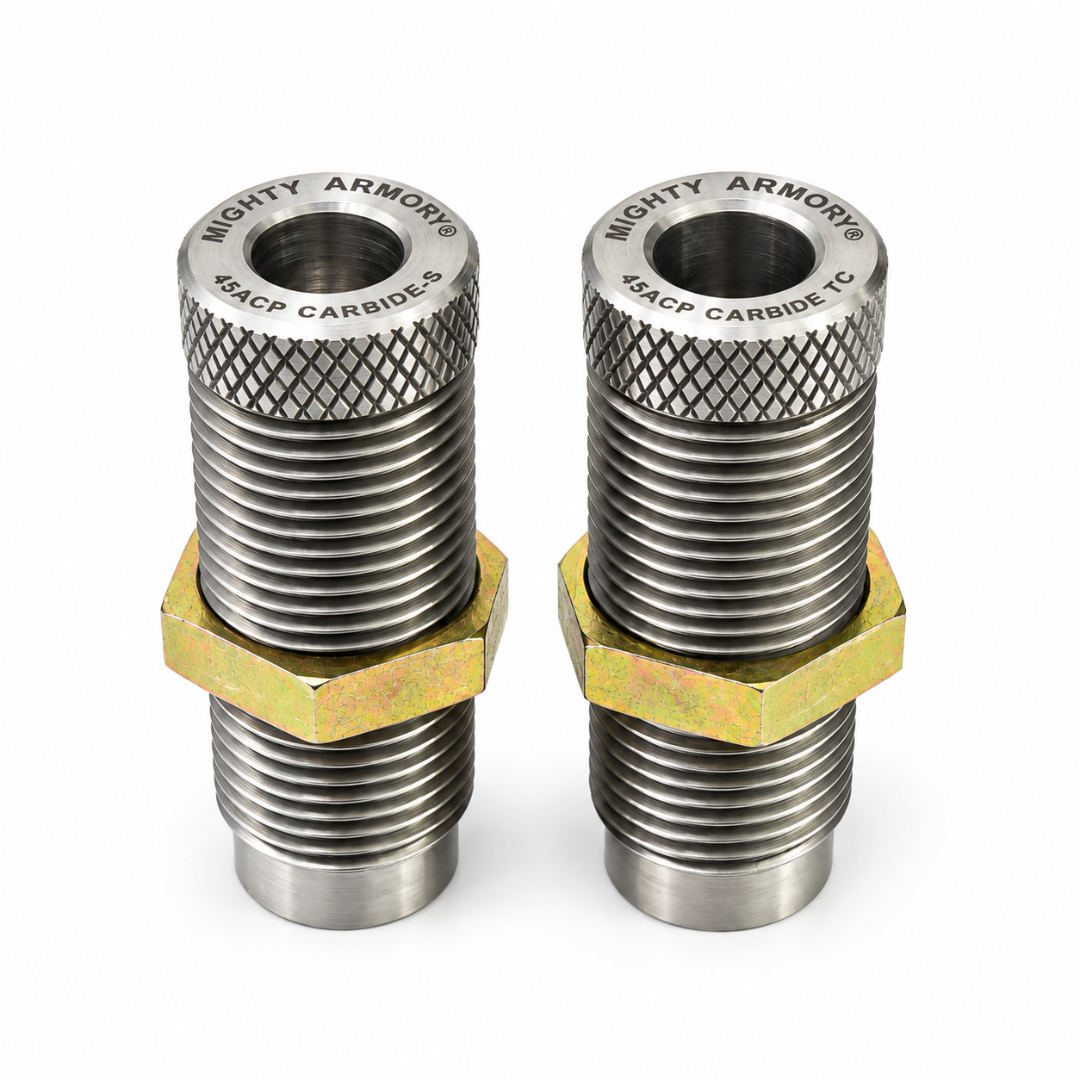

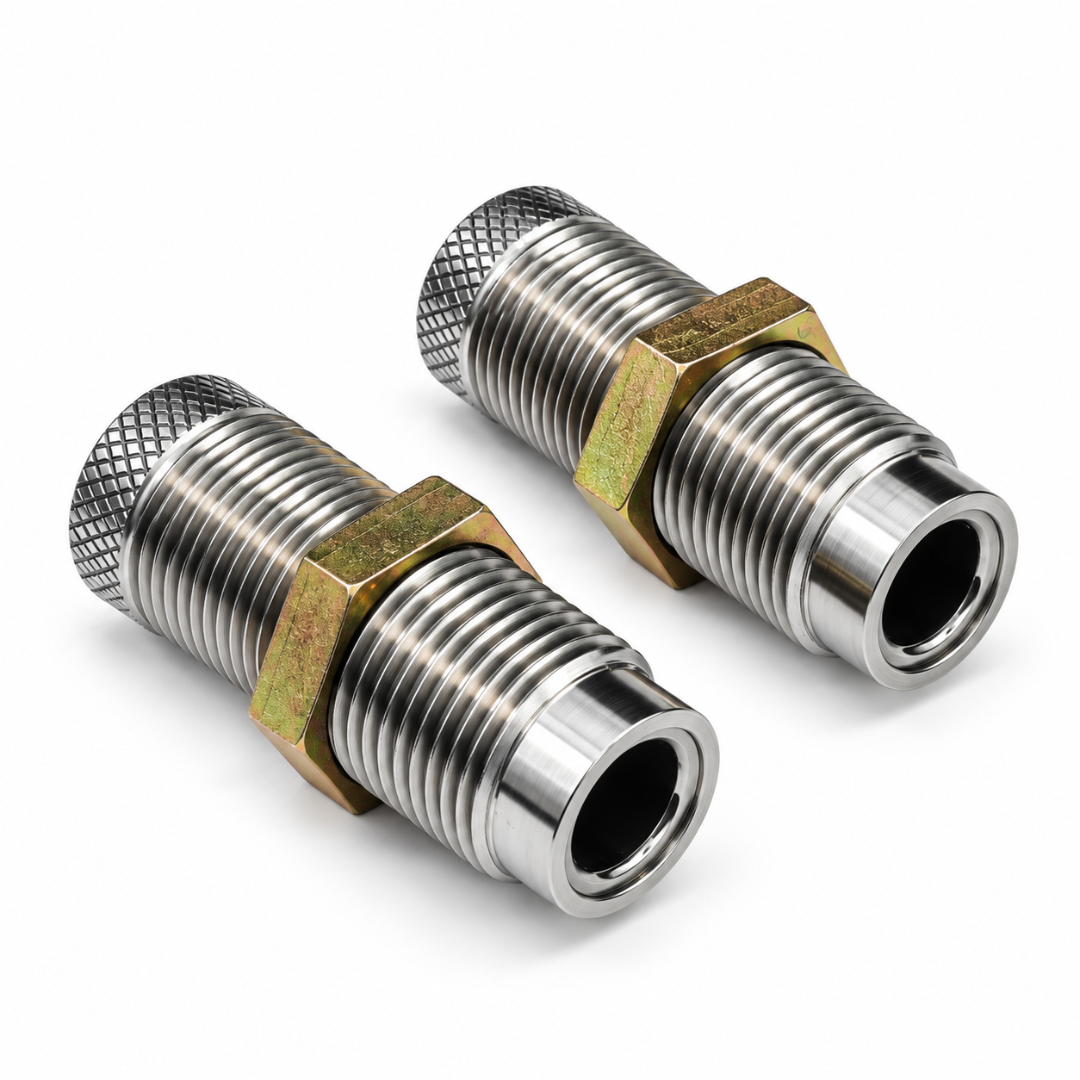

  • .45 ACP Gauge Master Sizing Die + Gauge Master Crimp Die

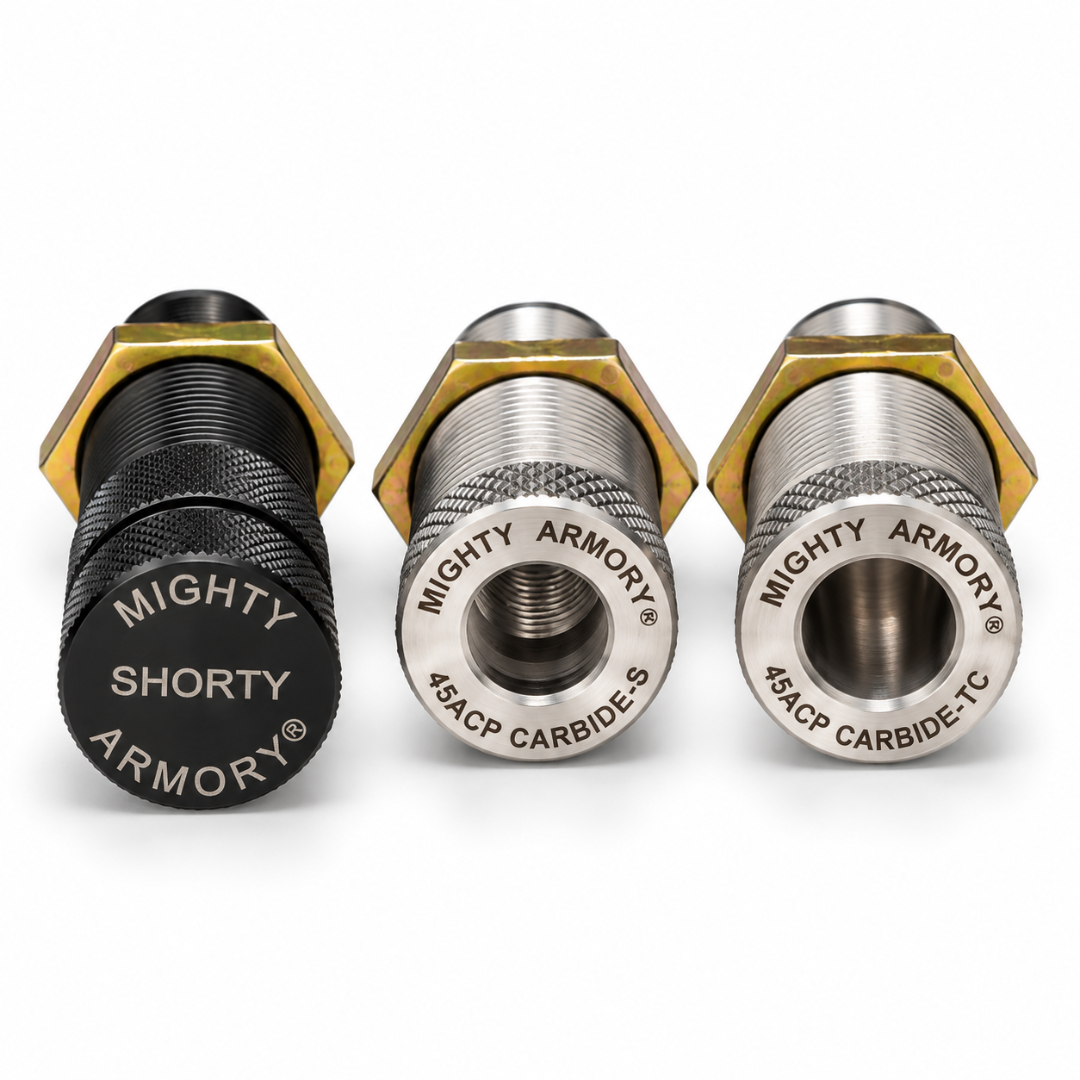

  • .45 ACP Gauge Master Sizing Die + Gauge Master Crimp Die + Shorty Bull Decapping Die

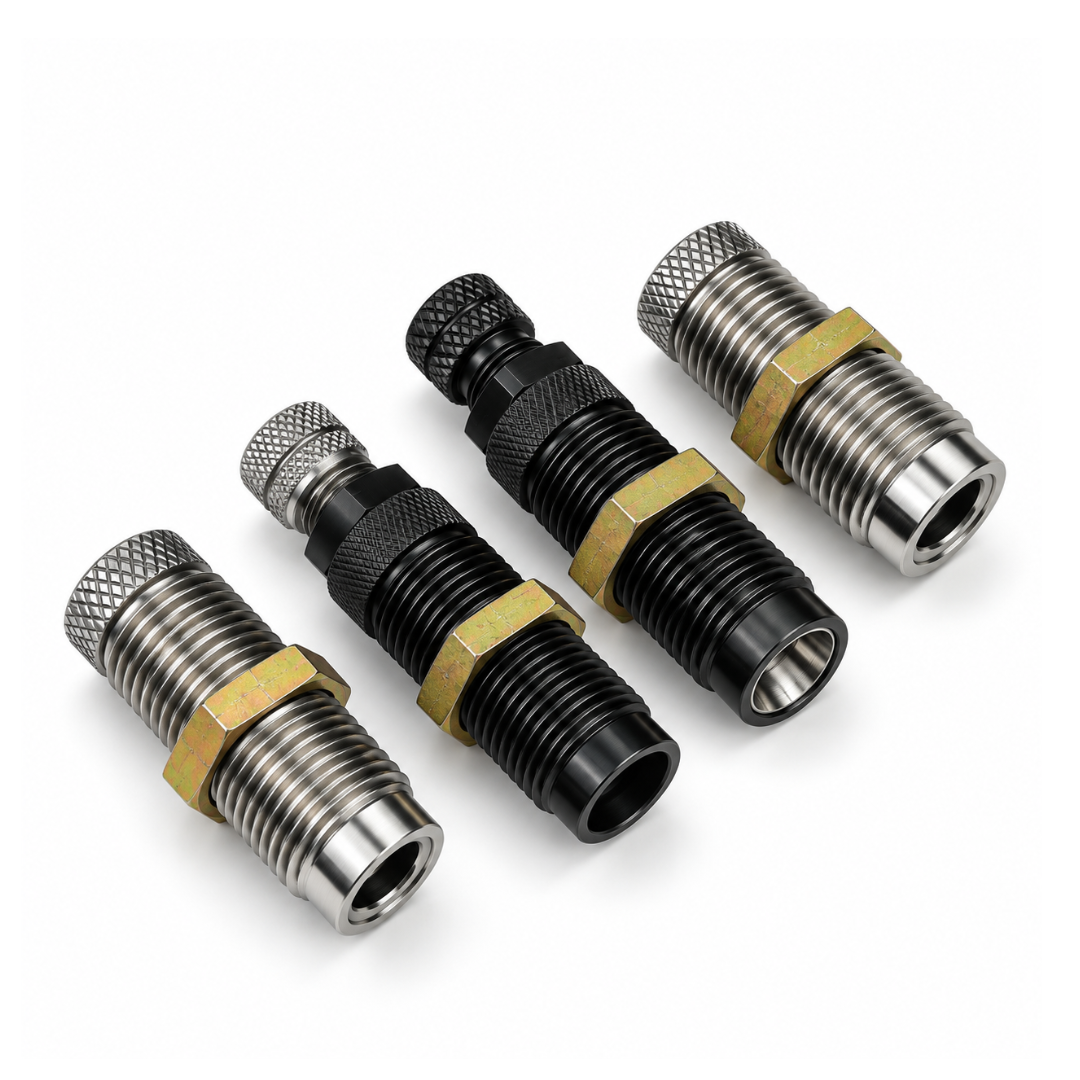

  • .45 ACP Gauge Master 4-Die Set includes Sizing + Flare/Expander + Seating + Crimp for Single Stage, Turret, Frankford Arsenal X-10, and Mark 7 or other AP Presses

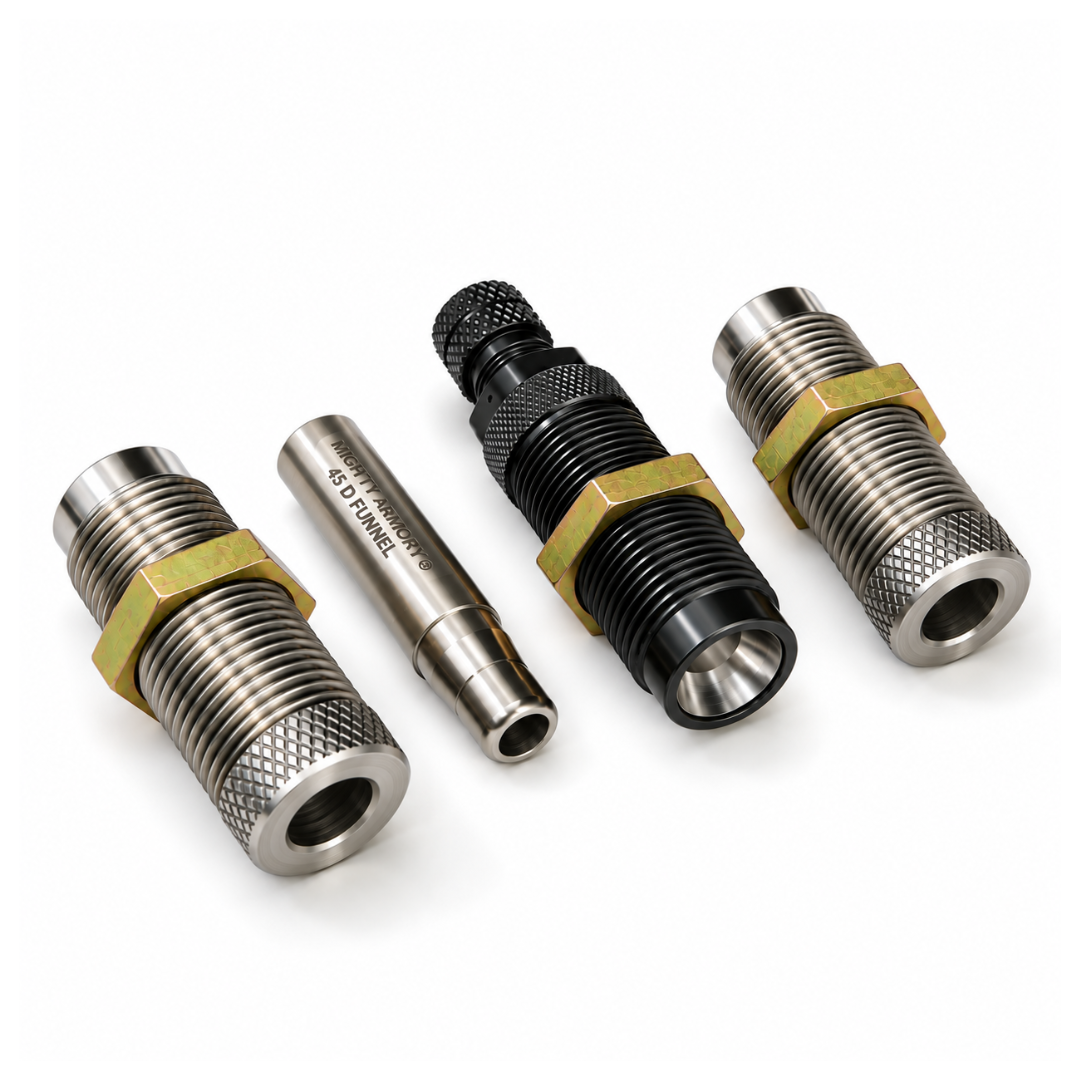

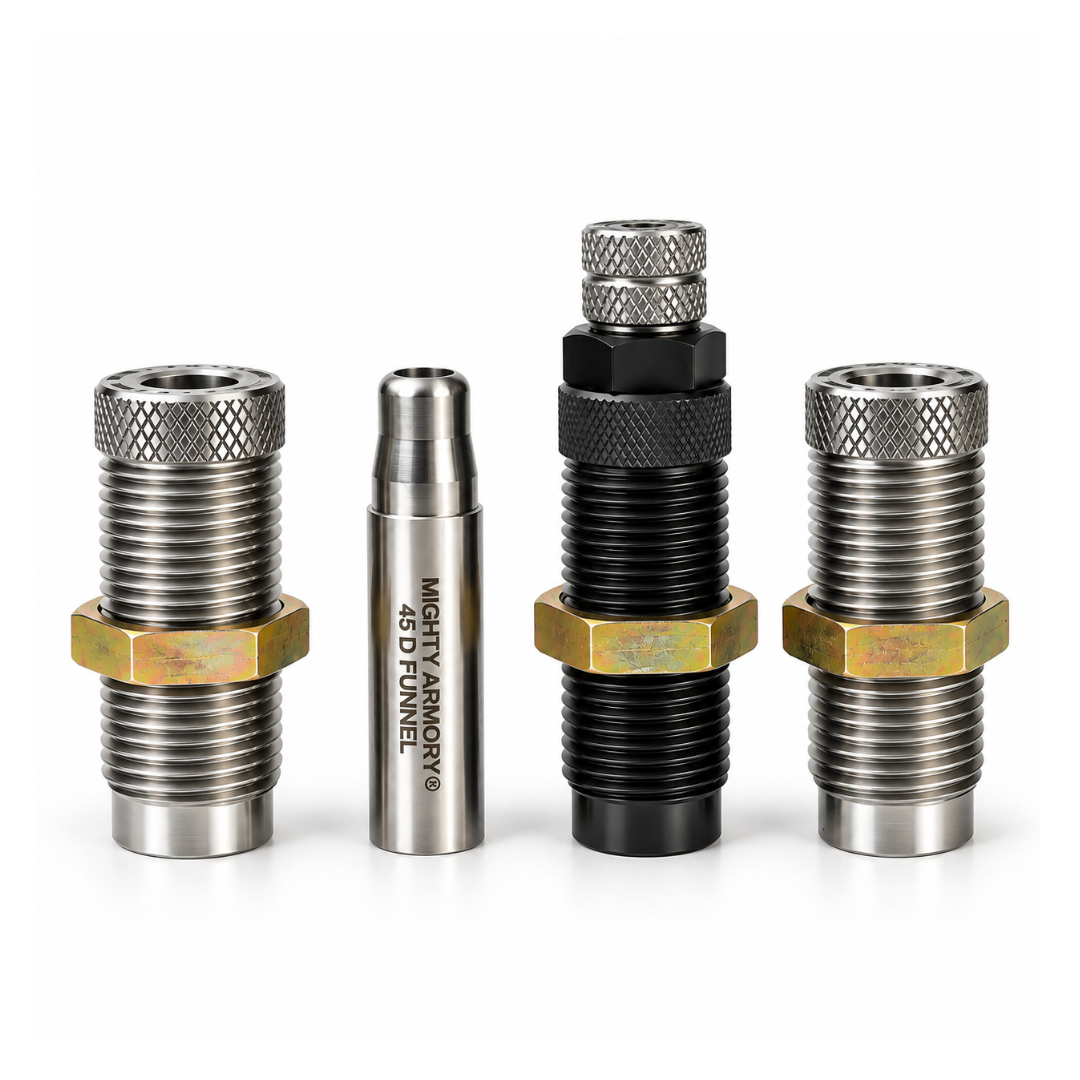

  • .45 ACP Gauge Master 4-Die Set includes Sizing + Dillon Funnel Flare + Seating + Crimp for Dillon Presses

Utilize the Mighty Armory Measured System with the recommended diameters

  • .45 Sizing Die: Touch to shell plate, back off .003”. Degrease Pin & Shaft Threads then Vibra-Tite (or orange Permatex) the decapping pin to shaft before use.
  • .45 Flare Expander: Set your flare/bell to .380-.383 diameter depending on bullet diameter.
  • .45 Seating Die: Set to desired COL.
  • .45 Taper Crimp: Set to .478 depending on the bullet diameter and Brinell hardness.

When reloading SAAMI sized rounds, expect smooth feed from magazines, easy feed into the chamber, correct case pressures, correct bullet tension, cleaner burning powder and increased accuracy. In addition, your brass will last longer for more reloads.

Mighty Armory

What's Included

Bundle 1:

- .45 ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die

Bundle 2:

- .45 ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Shorty Bull Decapping Die

Set 1 for Single Stage, Turret and Mark 7 Presses:

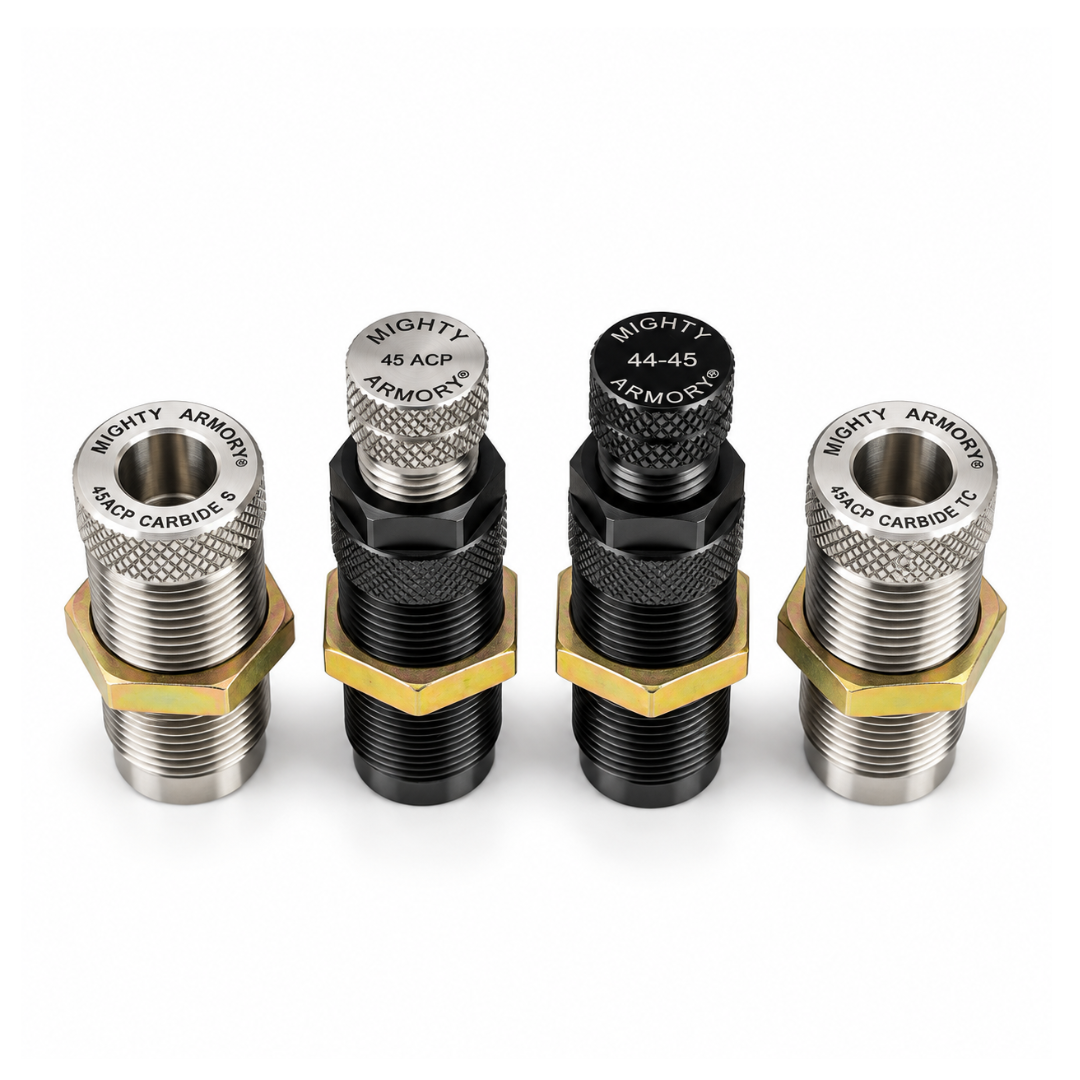

- .45 ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Flare Expander Die + Bullet Seating Die

Set 2 for Dillon Presses:

- .45 ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Dillon Funnel Flare + Bullet Seating Die

Popular Questions

Is lube required with the Gauge Master Sizing Die?

Reloaders may choose to use lube to size with these dies, but it is not necessary. If you choose to use lube we recommend a light spray with the Mighty Armory lanolin based case lube.

Is there a decapping component available with these dies?

The Guage Master series is designed to simplify the reloading process and for reloaders who process brass before loading. The sizing die is straight sizing. We recommend the Shorty Bull Decapping Die with the Gauge Master's due to it's full steel construction, primer flicker and strong value. Any of the Mighty Armory's Decapping Dies will complement this die set. The Carbide Pro die set does include a primer flicker decapping feature built into the die.

Instructions

INSTRUCTIONS

VIDEO: View the Gauge Master Carbide Die Instructions by clicking on this link

Step 1: Secure the Decapping Shaft on your Shorty Bull or other Mighty Armory decapping Die. Use vibratite or threadlocker on the pin threads. Snug & let it set for 30+ minutes. Ensure the shaft and threads are cleaned with alcohol to remove any oils.

Step 2: DECAPPING DIE – We recommend the Shorty Bull die with this set. Turn down the cap tightly in place so that the shaft is locked in. Listen for the snap from the primer flicker cap and spring.

Step 3: SIZING DIE - Turn the Sizing die down to touch the shell plate or shell holder.

Step 4: FLARE EXPANDER DIE - Set the flare expander die to the proper diameter depending on caliber, simply by
turning the shaft up or down.
For .45 ACP: set flare to .478

Step 5: BULLET SEATING DIE – turn die up or down from the top shaft to set seating depth / COL.

Step 6: TAPER CRIMP DIE – turn the die down to touch the shell plate and lock it down.

View full details
Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies

Mighty Armory .45 ACP Carbide GAUGE MASTER Reloading Dies

Regular price $139.95
Regular price Sale price $139.95
Sale Sold out

GAUGE MASTER CARBIDE RELOADING DIES & THE MEASURED SYSTEM

Join Wayne to learn more about the Gauge Master dies along with the simplified system for creating the perfect SAAMI Spec reloads. The Mighty Armory Measured System is demonstrated here with the Gauge Master Die Set in .45 ACP.

MIGHTY ARMORY

PRECISION MACHINED

All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

Learn More

SUPERIOR MATERIALS

We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

Learn More

MADE IN AMERICA

Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.
