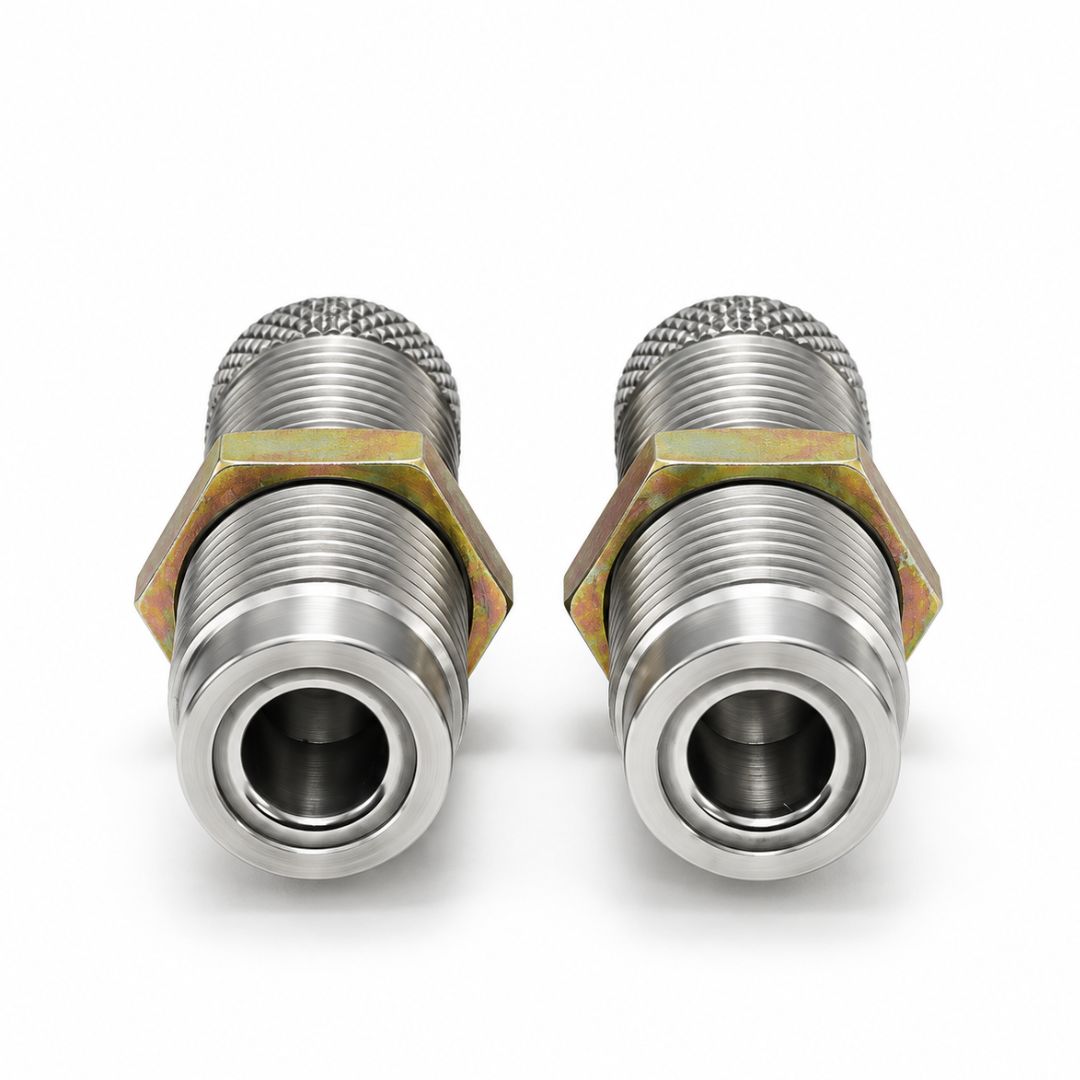

Mighty Armory 9mm Luger Carbide GAUGE MASTER Reloading Dies

Bundle 1:

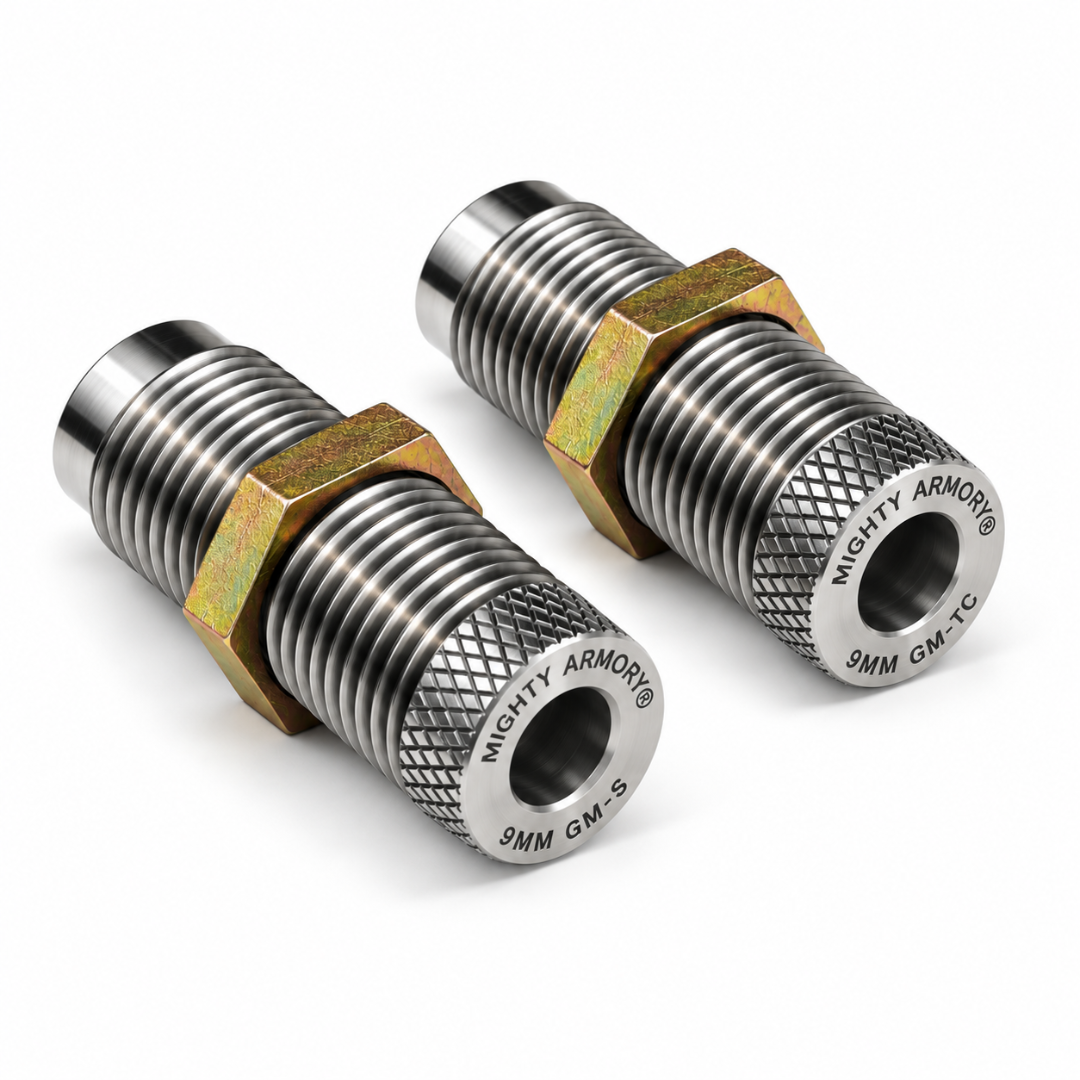

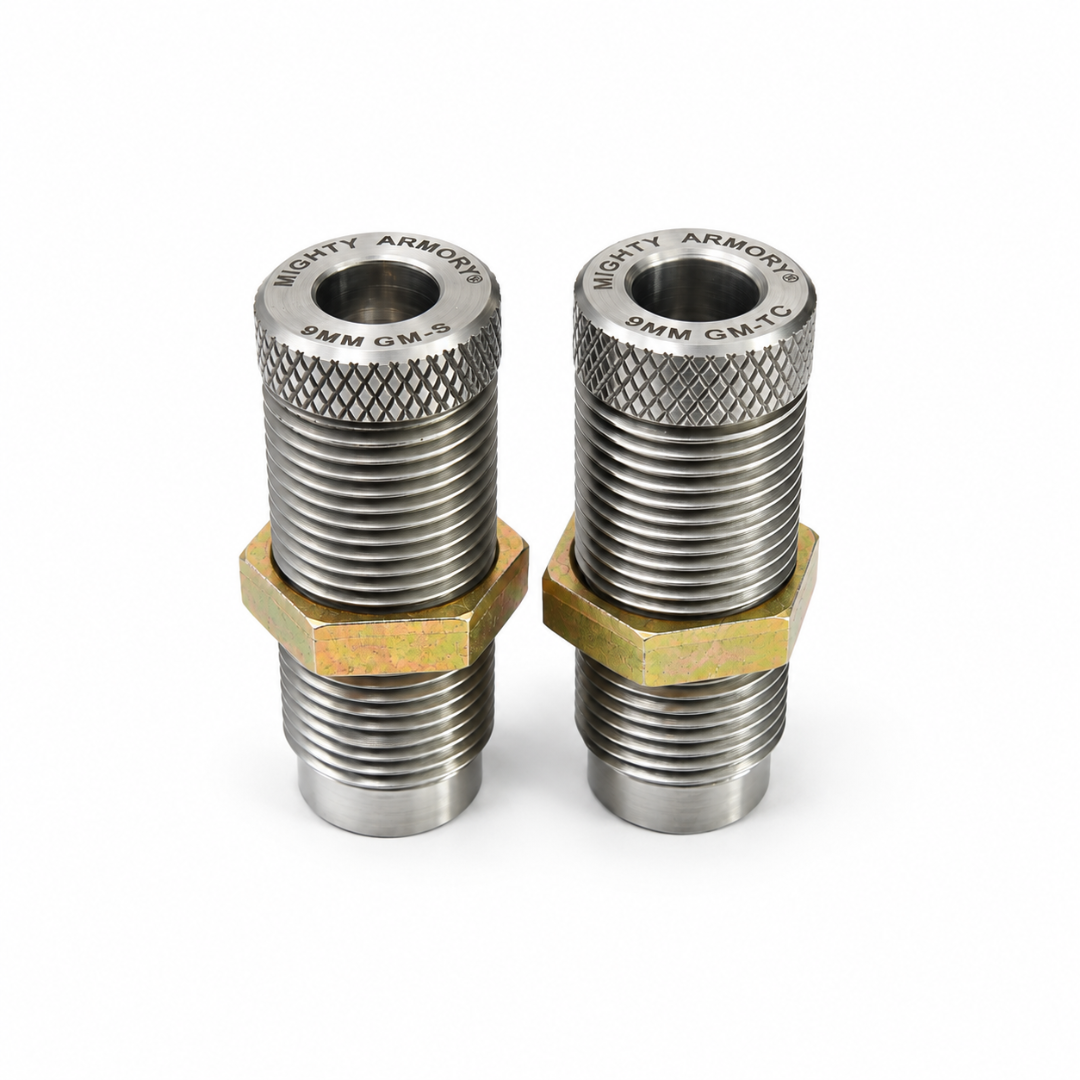

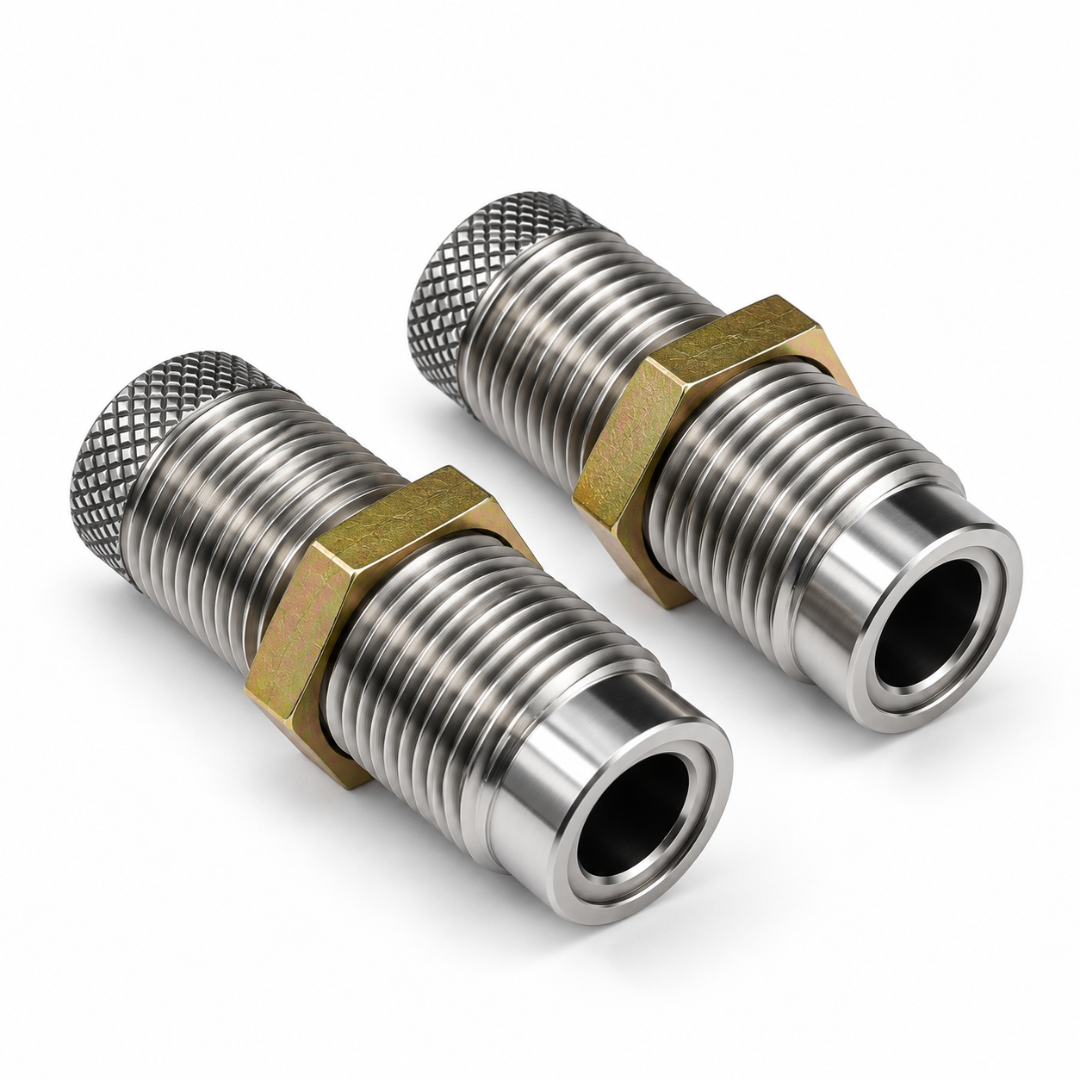

- 9mm ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die

Bundle 2:

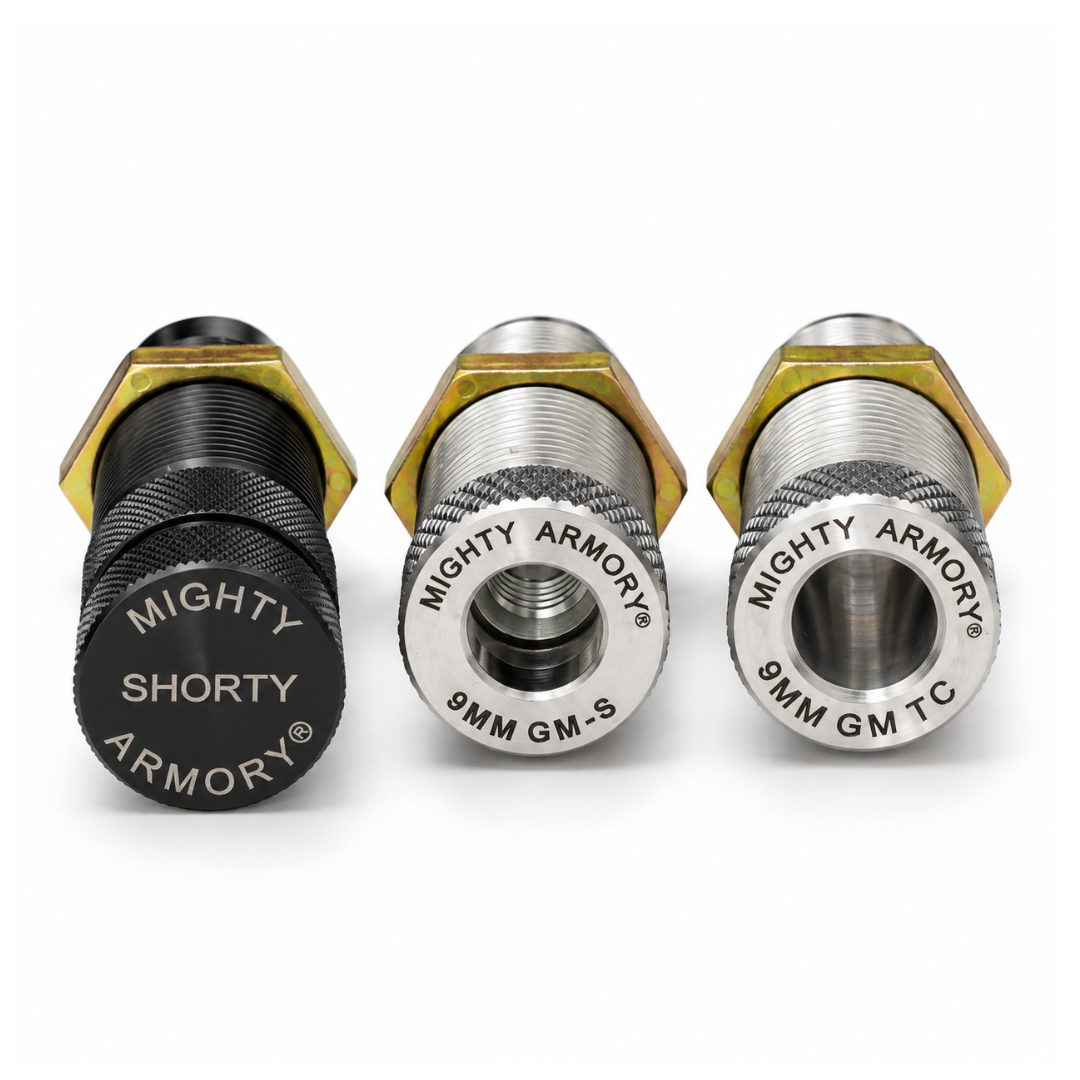

- 9mm Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Shorty Bull Decapping Die

Set 1 for Single Stage, Turret and Mark 7 Presses:

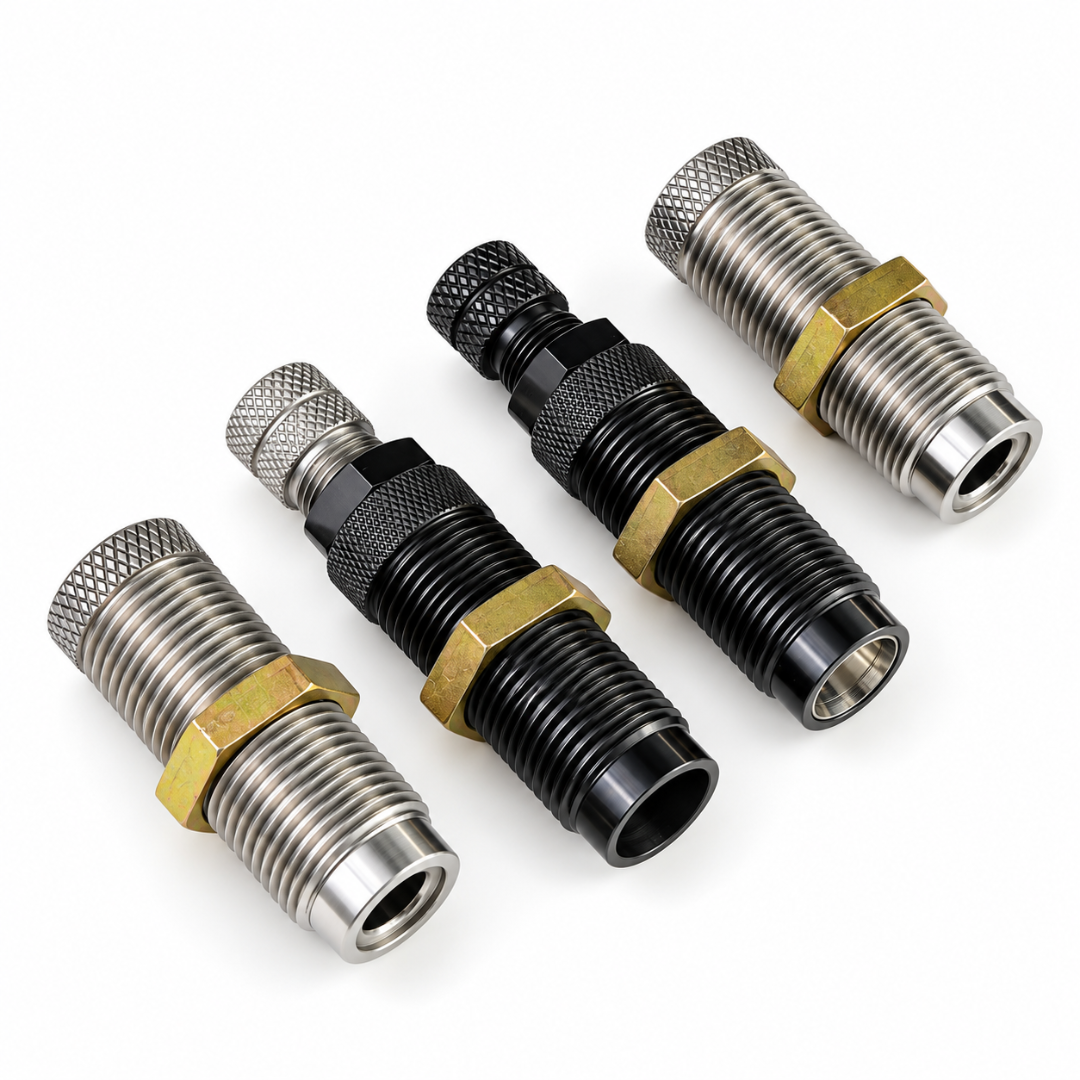

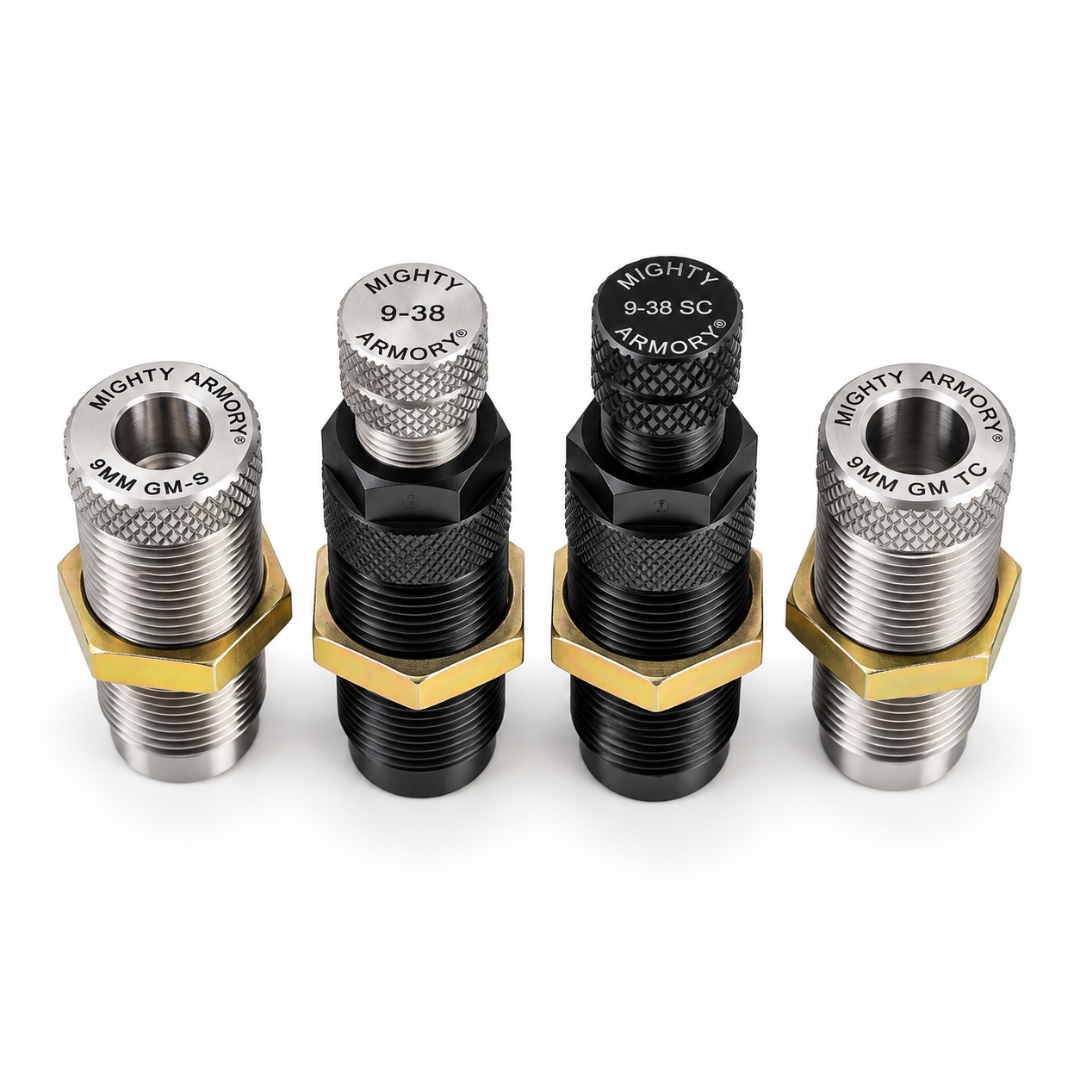

- 9mm Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Flare Expander Die + Bullet Seating Die

Set 2 for Dillon Presses:

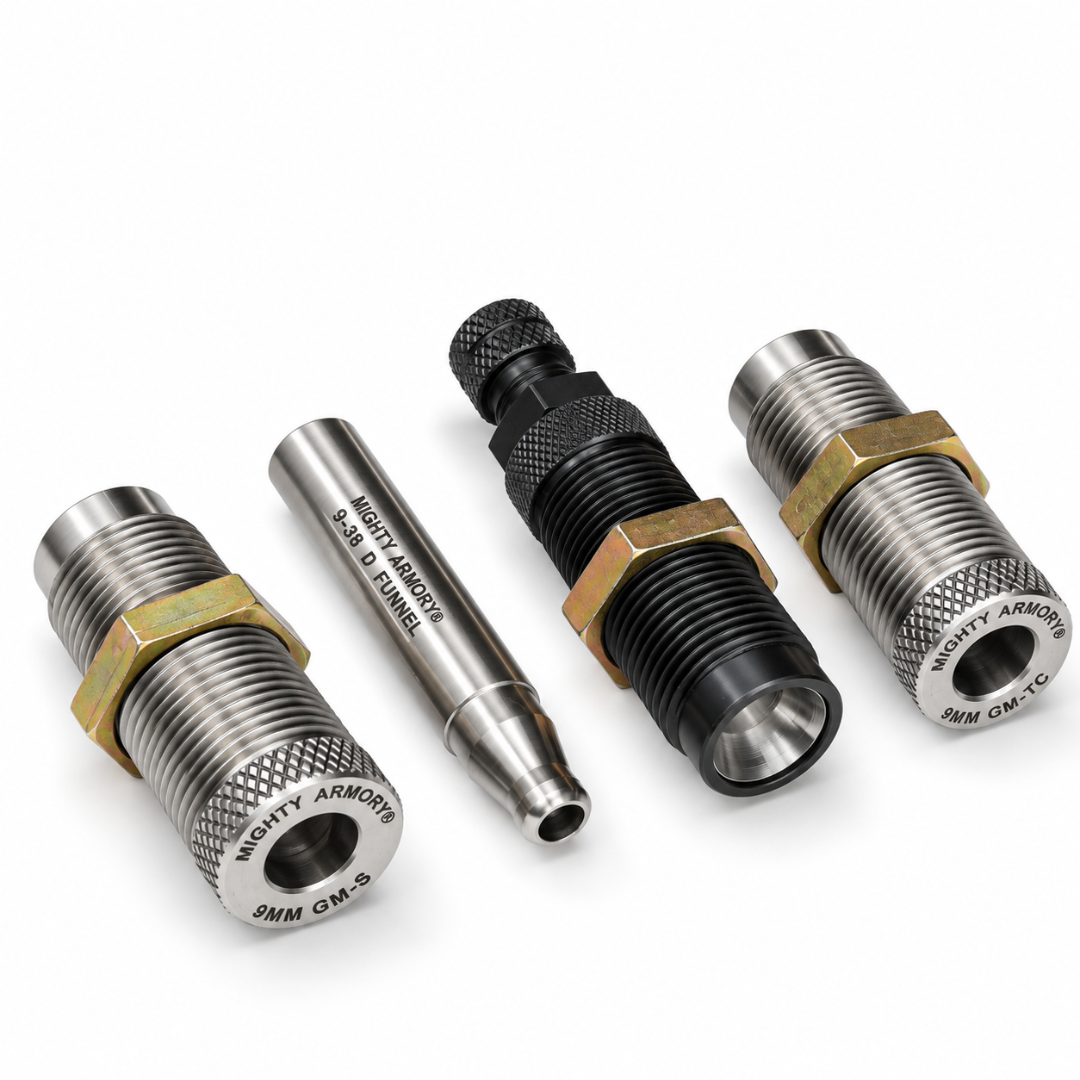

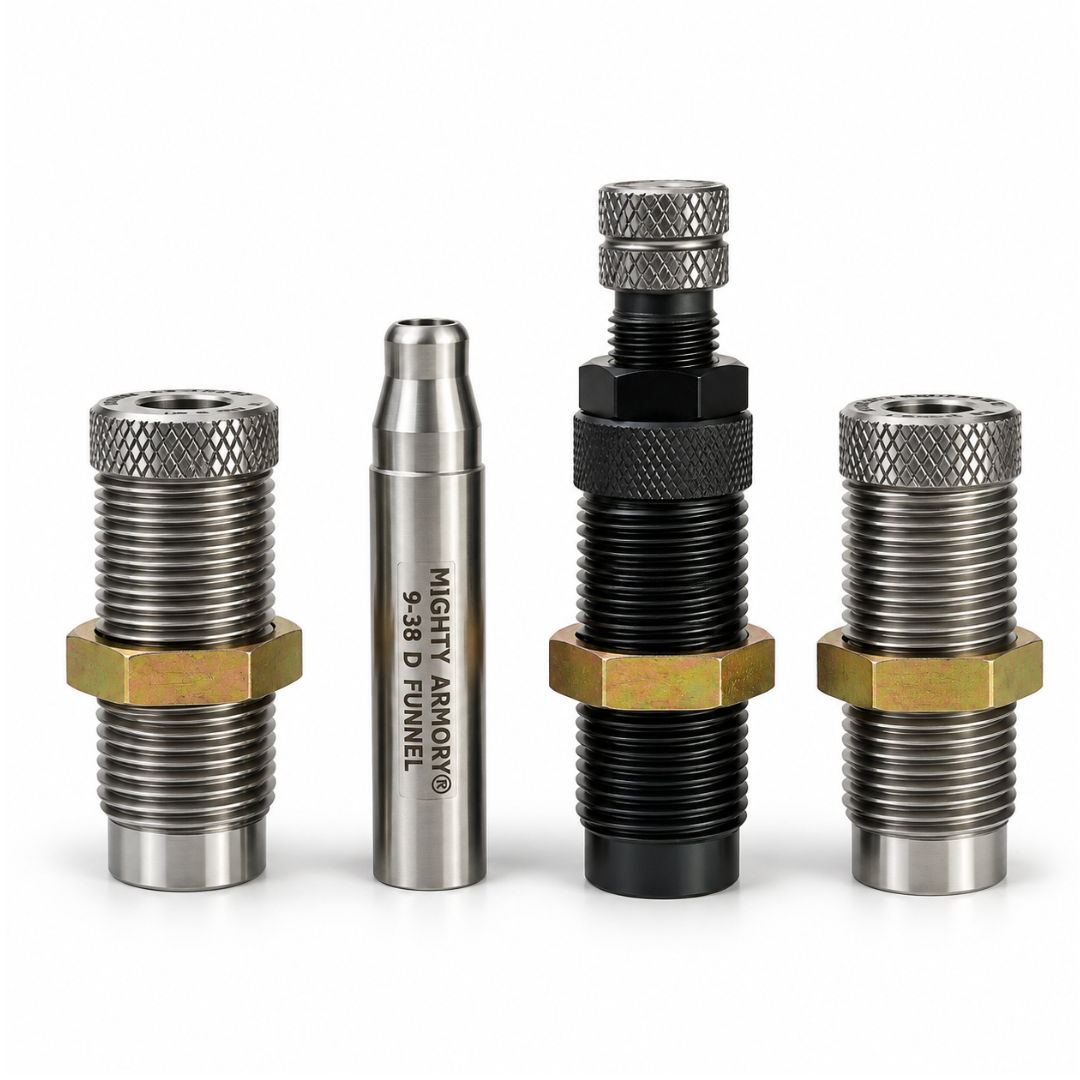

- .45 ACP Gauge Master Carbide Sizing Die + Gauge Master Carbide Crimp Die + Dillon Funnel Flare + Bullet Seating Die

Is lube required with the Gauge Master Sizing Die?

Reloaders may choose to use lube to size with these dies, but it is not necessary. If you choose to use lube we recommend a light spray with the Mighty Armory lanolin based case lube.

Pistol TNT Gold Match Sizing Die Instructions

Step 1: Clean die bore before use. First clean the bore with alcohol on a q-tip or paper towel. Then wipe the bore dry with a q-tip or paper towel.

Step 2: Screw the pin into the shaft about half-way. Use purple vibra-TITE 111 on the threads. This will prevent the pin from backing out of the shaft, which can cause problems. Use a 3/16" wrench to hold the flats of the shaft and snug the pin into place. Vice it with rubber grips to prevent scarring of the shaft. Do not overtighten the pin into the shaft – just snug it. The vibraTITE will do the rest.

Step 3: Drop shaft into the well. Add the primer flicker spring into the cap well. Screw on the cap all the way down snug against the o-ring, then back out the cap ¼ turn so that it can work properly. This will prevent primer pull back. You will hear the Flick or Snap of the primer while in use.

Step 4: Turn the die into your press tool head until the die mouth makes contact with the plate or shell holder. Depending on your press, you can back out the die ¼ turn.

Step 5: Lock the die into place.

Keep your die bore and body well oiled when not in use. DO NOT USE AEROSOL LUBE PRODUCTS ON MIGHTY ARMORY DIES. We recommend the use of a quality case lube, which will reduce heat and decrease pressure.
For autoprogressive, autodrive / automated presses, spray on a mix of 6oz 91% alcohol and 1oz PEG75 Lanolin. Spray cases completely, let dry for 30 minutes. PEG75 is water based and wipes away with ease. 
We recommend imperial wax on cases when reloading on single stage and turret presses.
