Mighty Armory

$99.95
$119.95 $99.95
Sale Sold out
Shipping calculated at checkout.
Tested and used by commercial loaders in the USA. The Mighty Armory Super Duty Hold Down Die CNC machined, black oxide-coated steel. Similar to the Super Duty Decapping Die, this innovative die is ...Read more
  • American Express
  • Discover
  • JCB
  • Mastercard
  • Visa

Product Description

Tested and used by commercial loaders in the USA.

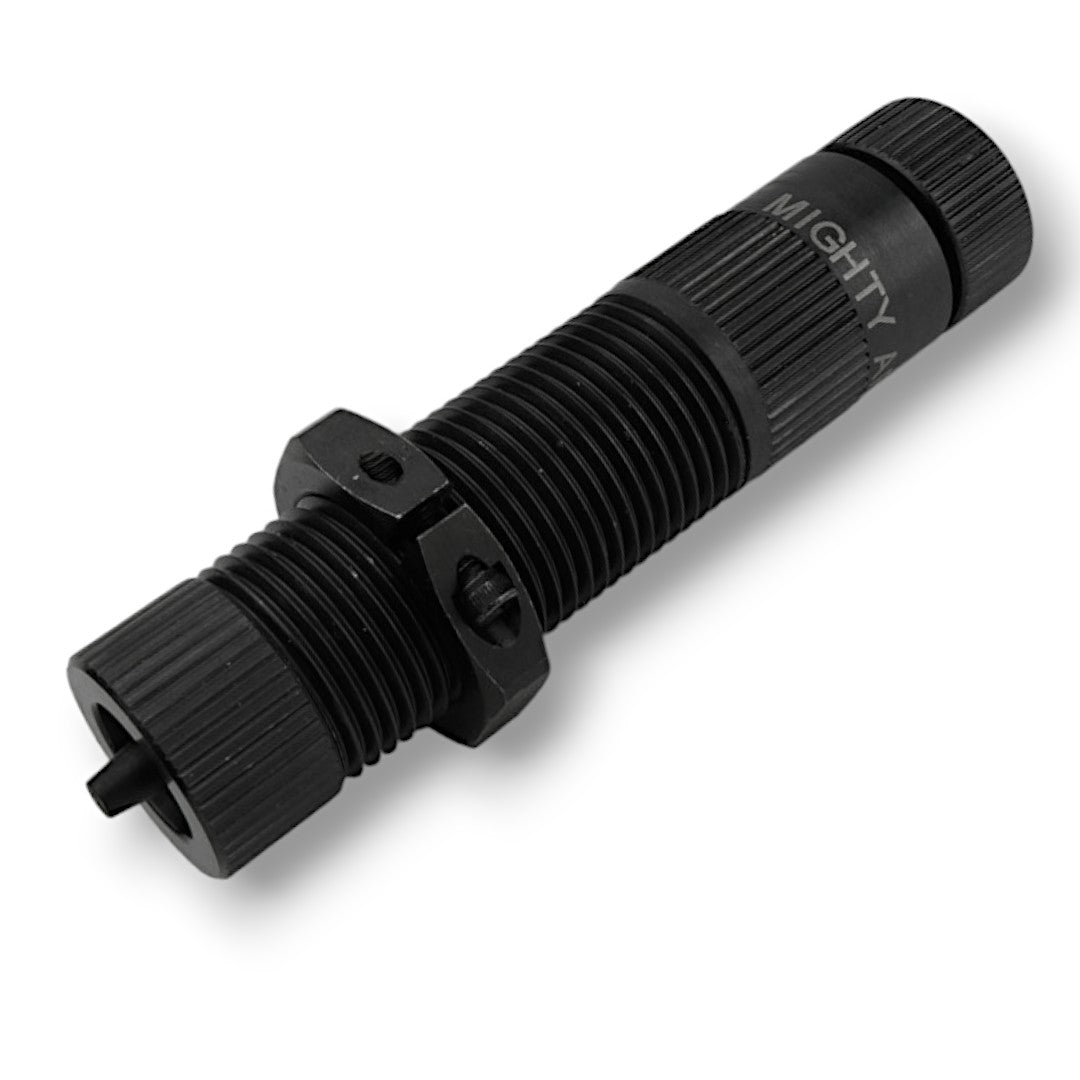

The Mighty Armory Super Duty Hold Down Die CNC machined, black oxide-coated steel. Similar to the Super Duty Decapping Die, this innovative die is a dynamic heavy duty, spring-operated design.

The Mighty Armory Super Duty Spring allows for consistent hold down pressure for Swaging and Priming.

Pro Tip:  The Super Duty Hold Down Die dually functions as Decapping die by simply swapping out the hold down tip for a decapping pin.

Mighty Armory quality you’ve come to expect.

“Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision CNC Reloading Tools

Mighty Armory

What's Included

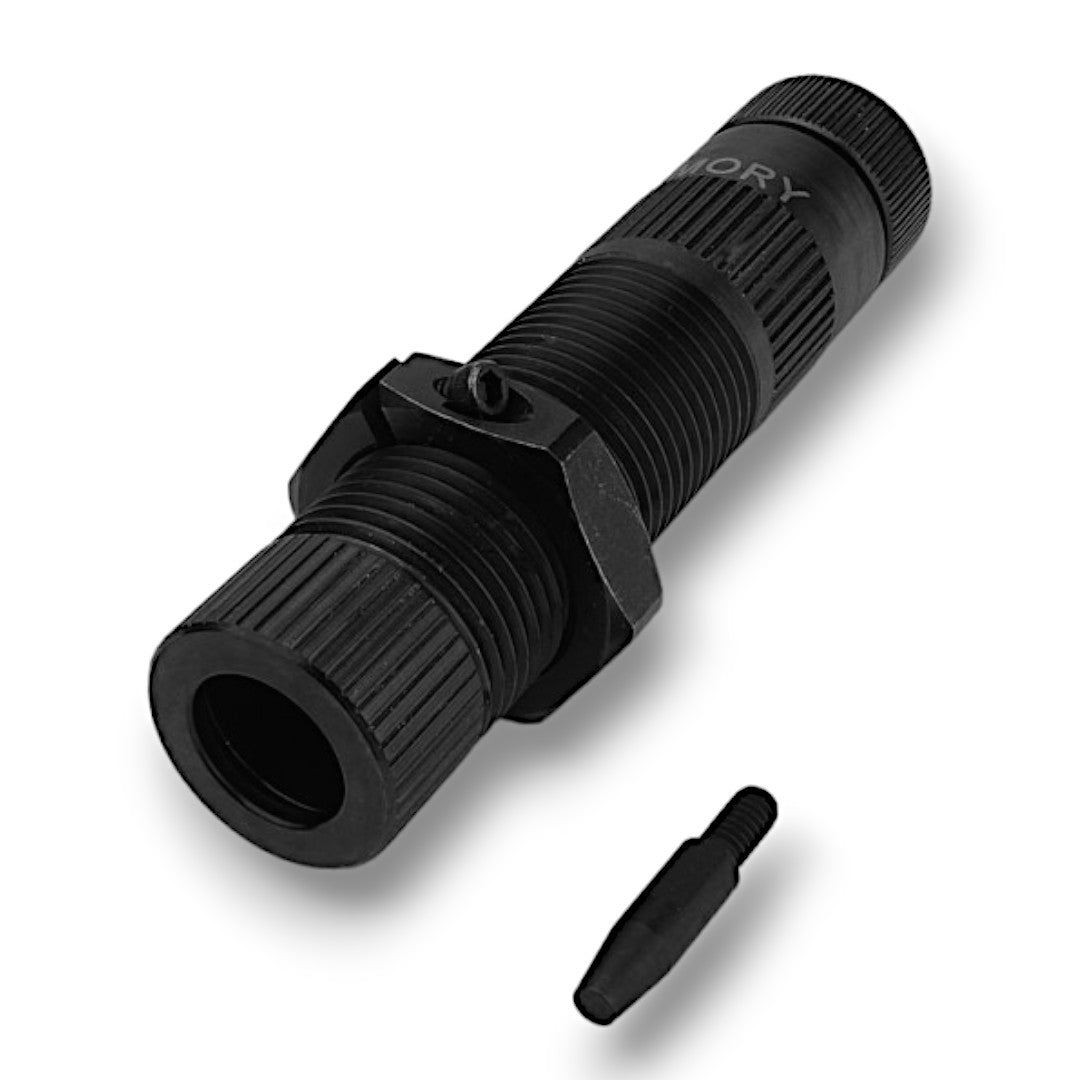

  • Mighty Armory Super Duty Case Hold Down Die
  • One case hold down tip

Instructions

Click Link for Super Duty Case Hold Down Instructions

Step 1: Ensure the spring is installed on the shaft.

Step 2: Screw the tip into the shaft about half-way. Use purple vibraTITE 111 on the threads. This will prevent the tip from backing out of the shaft, which can cause problems. Use a 3/16" wrench to hold the flats of the shaft and snug the pin into place. Vice it with rubber grips to prevent scarring of the shaft. Do not overtighten the tip into the shaft – just snug it. The vibraTITE will do the rest.

Step 3: Drop the shaft and tip into the die body and screw on the top cap of the die. You will feel the spring tension start. Turn the top down and leave a gap about the thickness of a dime. Leaving this gap will ensure the spring will work properly.

Step 4: Turn the die down into the tool head down far enough so that the lower threads on the die are below the bottom of the tool head.

Step 5: Install the bottom case holder cap (collet).

Step 6: Lower the die over a case. Lock the die down. All set to go!

View full details
Mighty Armory Super Duty Hold Down Die, Dynamic Spring Operated Mighty Armory Super Duty Hold Down Die, Dynamic Spring Operated

Mighty Armory Super Duty Hold Down Die, Dynamic Spring Operated

$99.95
$119.95 $99.95
Sale Sold out

Spring Loaded

Same time and eliminate frustration with the rebound spring design. Flick your primers down the shoot with every stroke of the press. Primer poppin' means no stoppin'.

Built to Perform

CNC machined for perfect vertical alignment. Rifle barrel steel shaft will last a lifetime. Heat-treated, M2 steel pins will knock out primers like a boss.

MIGHTY ARMORY

PRECISION MACHINED

All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

Learn More

SUPERIOR MATERIALS

We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

Learn More

MADE IN AMERICA

Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.
